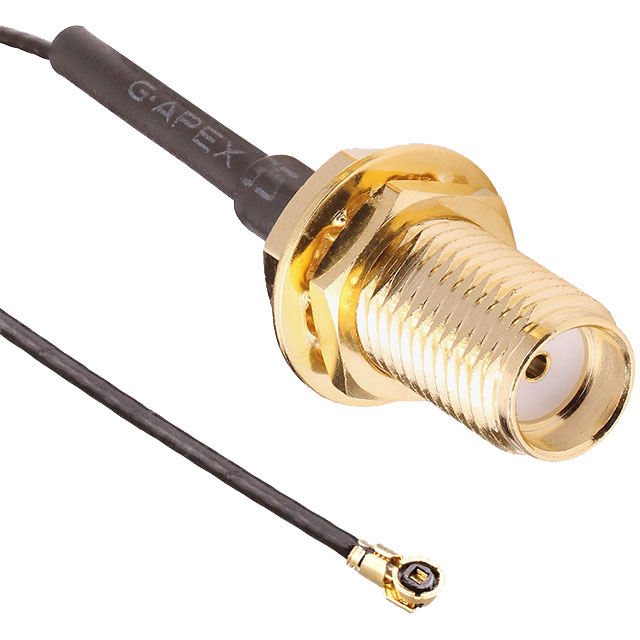

CSJ-SGFB-100-MHF4

Active

TE Connectivity Linx

CBL ASSY SMA-MHF4 JCK-PLG 3.937"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY SMA-MHF4 JCK-PLG 3.937"

Technical Specifications

Parameters and characteristics for this part

Specification	CSJ-SGFB-100-MHF4

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
2nd Connector Mounting Type	Free Hanging (In-Line)
Cable Type	Coaxial Cable
Cable Type [diameter]	0.81 mm
Color	Black
Frequency - Max [Max]	6000 MHz
Overall Impedance	50 Ohms

Part	2nd Connector Mounting Type	Color	Frequency - Max [Max]	1st Connector Mounting Feature	1st Connector Mounting Type	1st Connector	Overall Impedance	Cable Type	Cable Type [diameter]
TE Connectivity Linx CSJ-SGFB-100-MHF4	Free Hanging (In-Line)	Black	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	SMA Jack	50 Ohms	Coaxial Cable	0.81 mm
TE Connectivity Linx CSJ-SGFB-200-MHF4	Free Hanging (In-Line)	Black	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	SMA Jack	50 Ohms	Coaxial Cable	0.81 mm
TE Connectivity Linx CSJ-SGFB-100-MHF3	Free Hanging (In-Line)	Black	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	SMA Jack	50 Ohms	Coaxial Cable	0.81 mm
TE Connectivity Linx CSJ-SGFB-200-MHF3	Free Hanging (In-Line)	Black	6000 MHz	Bulkhead - Front Side Nut	Panel Mount	SMA Jack	50 Ohms	Coaxial Cable	0.81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 0.81mm OD Coaxial Cable 3.937" (100.00mm)

Technical documentation and resources

No documents available
