3PS-125-2-VT-S

Active

BRADY

SLEEVE, 0.125 IN DIA X 2 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.125 IN DIA X 2 IN W

Technical Specifications

Parameters and characteristics for this part

Part	Color	Label Type	Label Size [diameter]	Label Size [x]	Material	Operating Temperature [Max]	Operating Temperature [Min]	Label Size [Min]	Label Size [Max]	Label Size [diameter]	Label Size [Max]	Label Size [x]	Label Size [Min]
BRADY 3PS-125-2-RD-S-2	Red	Heat Shrinkable	0.05 in 0.11 in 0.13 in 1.2 mm 2.8 mm 3.2 mm	25.4 mm	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-125-2-WT	White	Heat Shrinkable	3.2 mm	50.8 mm	Polyolefin (PO)	135 °C	-55 °C	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in
BRADY 3PS-125-2-RD-S-3	Red	Heat Shrinkable	0.13 in 3.2 mm	0.67 in 17 mm	Polyolefin (PO)	135 °C	-55 °C	0.05 in 1.2 mm			0.11 in 2.8 mm
BRADY 3PS-125-2-YL	Yellow	Heat Shrinkable	3.2 mm	50.8 mm	Polyolefin (PO)	135 °C	-55 °C	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in
BRADY 3PS-125-2-GR-S-3	Green	Heat Shrinkable	0.13 in 3.2 mm	0.67 in 17 mm	Polyolefin (PO)	135 °C	-55 °C	0.05 in 1.2 mm			0.11 in 2.8 mm
BRADY 3PS-125-2-VT-S	Violet	Heat Shrinkable	3.2 mm	50.8 mm	Polyolefin (PO)	135 °C	-55 °C	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in
BRADY 3PS-125-2-VT-2	Violet	Heat Shrinkable	0.05 in 0.11 in 0.13 in 1.2 mm 2.8 mm 3.2 mm	25.4 mm	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-125-2-BR-2	Brown	Heat Shrinkable	0.05 in 0.11 in 0.13 in 1.2 mm 2.8 mm 3.2 mm	25.4 mm	Polyolefin (PO)	135 °C	-55 °C
BRADY 3PS-125-2-WT-S	White	Heat Shrinkable	3.2 mm	50.8 mm	Polyolefin (PO)	135 °C	-55 °C	1.2 mm	0.11 in	0.13 in	2.8 mm	2 in	0.05 in
BRADY 3PS-125-2-WT-4	White	Heat Shrinkable	0.05 in 0.11 in 0.13 in 1.2 mm 2.8 mm 3.2 mm	12.7 mm	Polyolefin (PO)	135 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 409.09

General part information

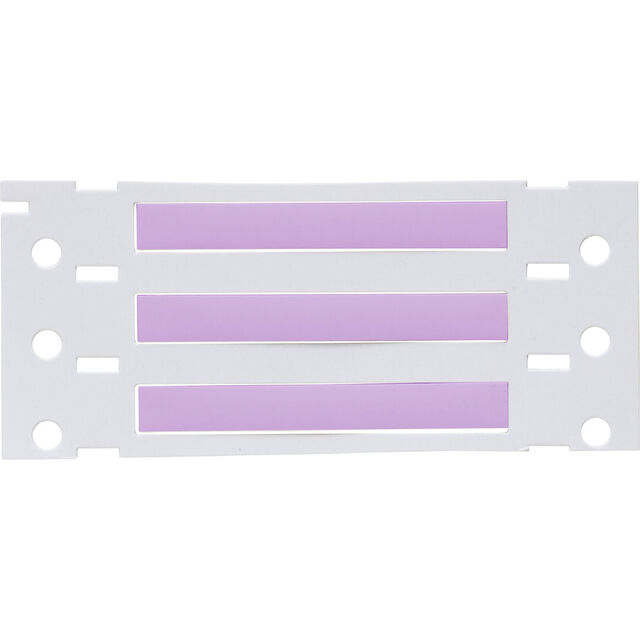

Violet Heat Shrinkable Label 2.00" W x 0.13" Dia (50.8mm x 3.2mm); Cable O.D. 0.05" ~ 0.11" (1.2mm ~ 2.8mm)

Technical documentation and resources
