887-060-542-807
ActiveEDAC Inc.

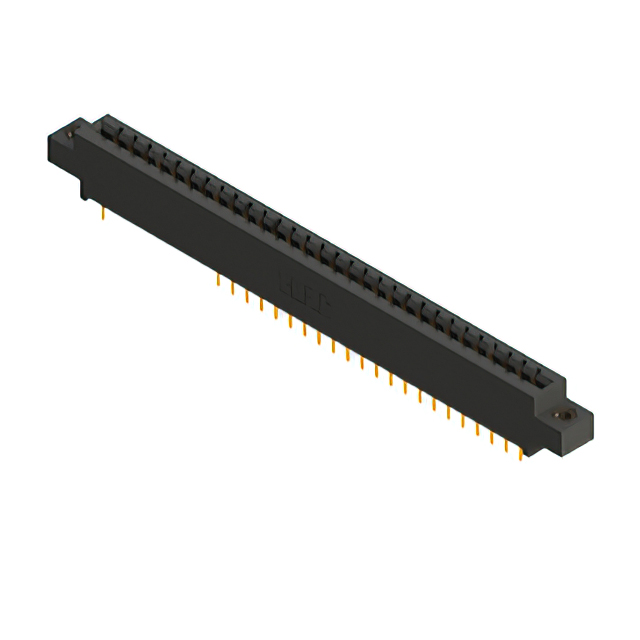

CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-060-542-807
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-060-542-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
887-060 Series
...
| Part | Read Out | Number of Rows | Termination Rows | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Color | Termination | Contact Material | Mounting Type | Flange Feature | Number of Positions | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Features | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Solder | Copper Alloy | Board Edge Straddle Mount | M3 Threaded Insert Top Mount Opening | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Card Extender | Non Specified - Dual Edge | ||||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Solder | Copper Alloy | Board Edge Straddle Mount | Flush Mount Top Opening Unthreaded | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Card Extender | Non Specified - Dual Edge | 3.96 mm | 0.156 in | ||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Solder | Copper Alloy | Through Hole | M3 Threaded Insert Top Mount Opening | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | |||||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Wire Wrap | Copper Alloy | Through Hole | Flush Mount Top Opening Unthreaded | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Solder Eyelet(s) | Copper Alloy | Through Hole | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | ||||||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Solder | Copper Alloy | Through Hole | Floating Bobbin Top Mount Opening | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Wire Wrap | Copper Alloy | Through Hole | M3 Threaded Insert Top Mount Opening | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | |||||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Wire Wrap | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | |||||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Solder | Copper Alloy | Through Hole | Flush Mount Top Opening Unthreaded | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | 3.25 mm | 0.128 " | |||
EDAC Inc. | Dual | 2 | 2 | Female | 125 °C | -40 °C | Cantilever | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Wire Wrap | Copper Alloy | Through Hole | 60 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 30 | Non Specified - Dual Edge | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 89.20 | |
Description
General part information
887-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Documents
Technical documentation and resources
