QAWA-24-5-US01
ActiveQualtek

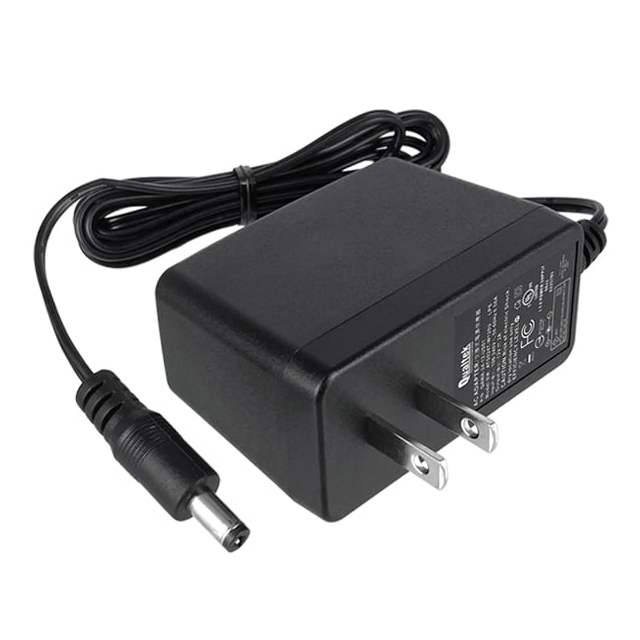

AC/DC WALL MOUNT ADAPTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
QAWA-24-5-US01
ActiveQualtek
AC/DC WALL MOUNT ADAPTER 5V 20W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QAWA-24-5-US01 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 20 W |
| Region Utilized | North America |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [x] | 2.83 " |
| Size / Dimension [y] | 34 mm |
| Size / Dimension [y] | 1.34 in |
| Size / Dimension [z] | 2.05 in |
| Size / Dimension [z] | 52 mm |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.52 | |
Description
General part information
QAWA-24 Series
5V 20 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
