60S23B-317N1

Obsolete

Rosenberger

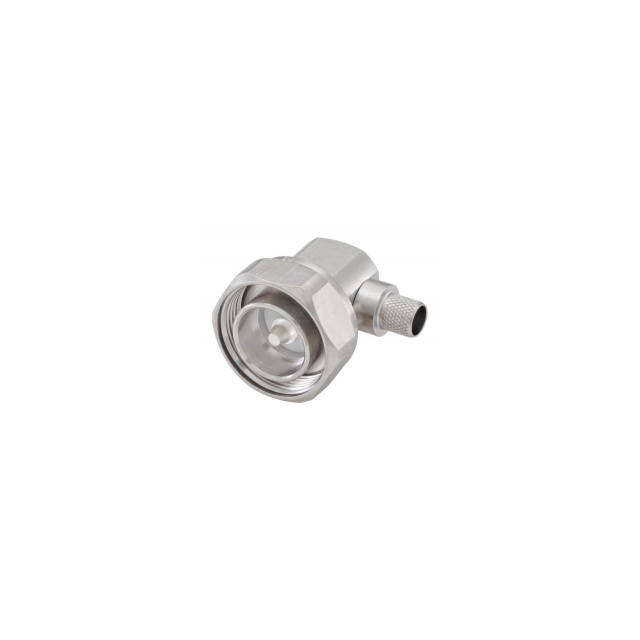

7/16 RIGHT ANGLE PLUG

Search across all available documentation for this part.

Obsolete

Rosenberger

7/16 RIGHT ANGLE PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	60S23B-317N1

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-219
Cable Group	393
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	7/16 DIN
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Cable Group	Cable Group	Body Material	Frequency - Max [Max]	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Mounting Type	Mating Cycles	Shield Termination	Number of Ports	Center Contact Material	Dielectric Material	Voltage Rating	Center Contact Plating	Body Finish	Housing Color	Contact Termination	Connector Type
Rosenberger 60S23B-317N1	RG-219	393	Brass	7.5 GHz	7/16 DIN	155 °C	-55 °C	50 Ohms	Free Hanging (In-Line) Right Angle	500	Crimp	1	Brass	Polytetrafluoroethylene (PTFE)	500 V	Silver	White Bronze	Silver	Solder	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
