OSTTE081161

Active

On Shore Technology Inc.

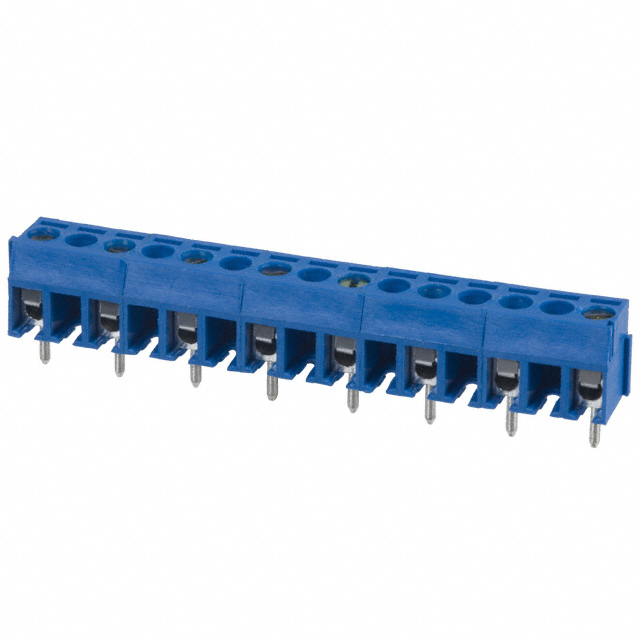

TERM BLK 8POS SIDE ENTRY 7MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 8POS SIDE ENTRY 7MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OSTTE081161

Clamp Material - Plating	Stainless, Steel
Contact Material - Plating [custom]	Brass
Current	10 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-33 °C
Positions Per Level	8
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Screw Thread	M2
Torque - Screw	0.15 Nm
Torque - Screw	1.3 Lb-In
Voltage	125 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screw

Part	Housing Material	Features	Screw Material - Plating	Wire Termination	Positions Per Level	Current	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Wire Gauge [Max]	Wire Gauge [Min]	Color	Clamp Material - Plating	Voltage	Mating Orientation	Screw Thread	Number of Levels	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Contact Material - Plating [custom]
On Shore Technology Inc. OSTTE080104	Thermoplastic	Interlocking (Side)	Steel Zinc Plated	Screw - Leaf Spring Wire Guard	8	10 A	3.5 mm	0.138 in	Tin Plated	26 AWG	16 AWG	Black	Stainless Steel	125 V	Horizontal with Board	M2	1	Through Hole	-40 °C	115 °C	0.2 Nm	1.7 Lb-In
On Shore Technology Inc. OSTTE081161	Polyamide (PA) Nylon	Interlocking (Side)	Steel Galvanized - Chromate Plated	Screw	8	10 A				26 AWG	16 AWG		Stainless Steel	125 V	Horizontal with Board	M2	1	Through Hole	-33 °C	120 °C	0.15 Nm	1.3 Lb-In	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	54	$ 1.08

General part information

8 Position Wire to Board Terminal Block Horizontal with Board 0.276" (7.00mm) Through Hole

Technical documentation and resources

No documents available
