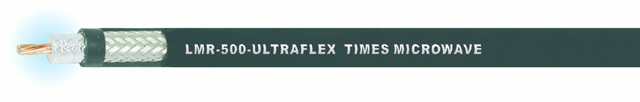

LMR-500-FR

Active

Amphenol Times Microwave Systems

LMR-500 W/NON-HALOGEN FR JKT, LI

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

LMR-500 W/NON-HALOGEN FR JKT, LI

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-500-FR

Cable Type	Coaxial - Riser
Conductor Material	Aluminum, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.37 "
Dielectric Diameter [diameter]	9.4 mm
Dielectric Material	Foam Polyethylene (FPE)
Features	Fire Retardant
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	12.7 mm
Jacket (Insulation) Diameter [diameter]	0.5 in
Jacket (Insulation) Material	Polyethylene (PE), Riser
Jacket Color	Black
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	82

Part	Shield Type	Conductor Strand	Impedance	Cable Type	Features	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	VoP, Velocity of Propagation	Jacket (Insulation) Material	Dielectric Material	Shield Material
Amphenol Times Microwave Systems LMR-500-FR	Braid	Solid	50 Ohms	Coaxial - Riser	Fire Retardant	0.37 "	9.4 mm	Black	12.7 mm	0.5 in	85 °C	-40 °C	Aluminum Copper Coated	82	Polyethylene (PE) Riser	Foam Polyethylene (FPE)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-500-ULTRAFLEX	Braid		50 Ohms	Coaxial		0.37 "	9.4 mm	Black	12.7 mm	0.5 in	85 °C	-40 °C	Copper Bare	85	Thermoplastic Elastomer (TPE)	Foam Polyethylene (FPE)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-500-DB	Braid	Solid	50 Ohms	Coaxial	Direct Burial Watertight	0.37 "	9.4 mm	Black	12.7 mm	0.5 in	85 °C	-40 °C	Aluminum Copper Coated	82	Polyethylene (PE)	Foam Polyethylene (FPE)	Aluminum Copper Tinned
Amphenol Times Microwave Systems LMR-500-LLPX	Braid	Solid	50 Ohms	Coaxial - Plenum		0.37 "	9.4 mm	Red	11.81 mm	0.465 in	125 °C	-40 °C	Aluminum Copper Coated	76	Fluoropolymer Plenum	Polytetrafluoroethylene (PTFE)	Aluminum Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.01

General part information

Coaxial - Riser Cable 50 Ohms
