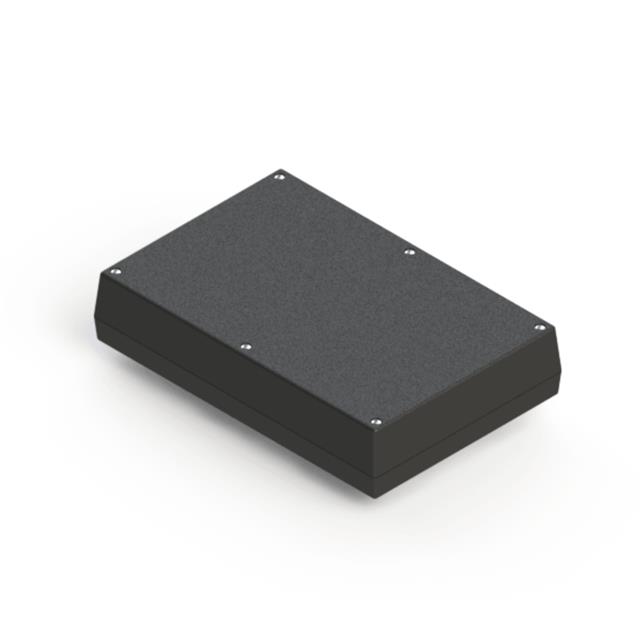

192R,BK

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	192R,BK

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.711 lb
Weight	322.5 g

Part	Thickness	Thickness	Weight	Weight	Color	Container Type	Design	Material	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Height [z]	Height [z]	Material Flammability Rating	Features	Area (L x W)	Area (L x W)
Serpac 192R,BK	2.54 mm	0.1 in	0.711 lb	322.5 g	Black	Box	Hand Held Split Sides	Plastic ABS	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	50.8 mm	2 in	UL94 HB	Front Access PCB Supports	60.2 in²	388 cm²
Serpac 192RI,GY	2.54 mm	0.1 in	0.711 lb	322.5 g	Gray	Box	Hand Held Split Sides	Plastic ABS	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	50.8 mm	2 in	UL94 HB	Front Access PCB Supports	60.2 in²	388 cm²
Serpac 192R,GY	2.54 mm	0.1 in	0.711 lb	322.5 g	Gray	Box	Hand Held Split Sides	Plastic ABS	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	50.8 mm	2 in	UL94 HB	Front Access PCB Supports	60.2 in²	388 cm²
Serpac 192RI,BK	2.54 mm	0.1 in	0.711 lb	322.5 g	Black	Box	Hand Held Split Sides	Plastic ABS	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	50.8 mm	2 in	UL94 HB	Front Access PCB Supports	60.2 in²	388 cm²
Serpac 192RI,AL	2.54 mm	0.1 in	0.711 lb	322.5 g	Almond	Box	Hand Held Split Sides	Plastic ABS	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	50.8 mm	2 in	UL94 HB	Front Access PCB Supports	60.2 in²	388 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.13

General part information

Box Plastic, ABS Black Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.000" (50.80mm)

Technical documentation and resources

No documents available
