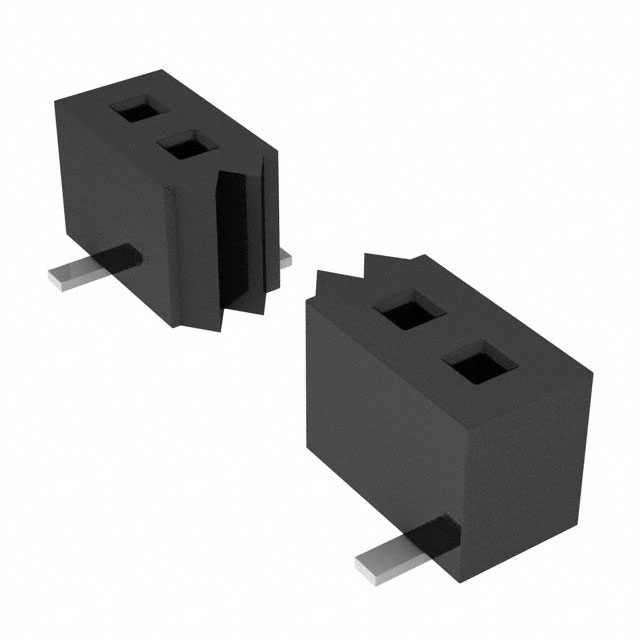

CLP-132-02-F-S
ActiveSamtec Inc.
CONN RCPT 32POS 0.05 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLP-132-02-F-S
ActiveSamtec Inc.
CONN RCPT 32POS 0.05 GOLD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLP-132-02-F-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3.3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.084 in |
| Insulation Height | 2.14 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Termination | Solder |
| Voltage Rating | 330 VDC, 240 VAC |
CLP-132 Series
| Part | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage Rating | Number of Rows | Material Flammability Rating | Insulation Material | Contact Finish - Mating | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Current Rating (Amps) | Features | Insulation Color | Fastening Type | Insulation Height | Insulation Height | Contact Finish - Post | Contact Shape | Number of Positions | Contact Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle | 10 çin | 0.25 çm | Solder | 3.3 A | Board Guide | Black | Push-Pull | 0.084 in | 2.14 mm | Tin | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | ||
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle Bottom Entry | 10 çin | 0.25 çm | Solder | 3.3 A | Board Guide Pick and Place | Black | Push-Pull | 0.084 in | 2.14 mm | Tin | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | ||
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle Bottom Entry | 3 µin | 0.076 µm | Solder | 3.3 A | Black | Push-Pull | 0.084 in | 2.14 mm | Tin | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | |||
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount Right Angle | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle | 3 µin | 0.076 µm | Solder | 3.3 A | Black | Push-Pull | 0.135 " | 3.43 mm | Tin | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | |||
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle | 10 çin | 0.25 çm | Solder | 3.3 A | Black | Push-Pull | 0.09 in | 2.29 mm | Gold | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | 0.099 µm | 3.9 µin | |
Samtec Inc. | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 1 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle | 3 µin | 0.076 µm | Solder | 3.3 A | Black | Push-Pull | 0.084 in | 2.14 mm | Tin | Square | Female Socket | All | 0.05 in | 1.27 mm | ||||||
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle | 10 çin | 0.25 çm | Solder | 3.3 A | Pick and Place | Black | Push-Pull | 0.084 in | 2.14 mm | Gold | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | 0.076 µm | 3 µin |
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle Bottom Entry | 3 µin | 0.076 µm | Solder | 3.3 A | Board Guide Pick and Place | Black | Push-Pull | 0.084 in | 2.14 mm | Tin | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | ||
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle | 10 çin | 0.25 çm | Solder | 3.3 A | Black | Push-Pull | 0.084 in | 2.14 mm | Tin | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm | |||
Samtec Inc. | 0.05 in | 1.27 mm | Phosphor Bronze | -55 °C | 125 °C | Surface Mount | 240 VAC 330 VDC | 2 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Gold | Receptacle | 10 çin | 0.25 çm | Solder | 3.3 A | Pick and Place | Black | Push-Pull | 0.084 in | 2.14 mm | Tin | Square | 64 | Female Socket | All | 0.05 in | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 14 | $ 4.70 | |
Description
General part information
CLP-132 Series
32 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
