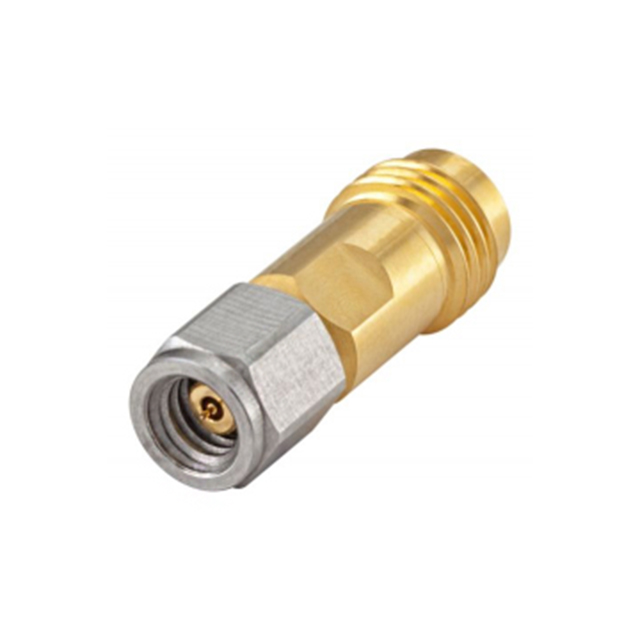

01S108-K00D3
ActiveRosenberger
PRECISION 1.00 ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
01S108-K00D3
ActiveRosenberger
PRECISION 1.00 ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 01S108-K00D3 |
|---|---|
| Adapter Series [Max] | RPC-1.85 |
| Adapter Series [Min] | RPC-1.00 |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 1 mm |
| Convert From (Adapter End) | Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, 1.85mm Jack |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Frequency - Max [Max] | 70 GHz |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2325.85 | |
Description
General part information
01S108 Series
Adapter Coaxial Connector 1.0mm Plug, Male Pin To 1.85mm Jack, Female Socket
