6036492

Active

SICK, Inc.

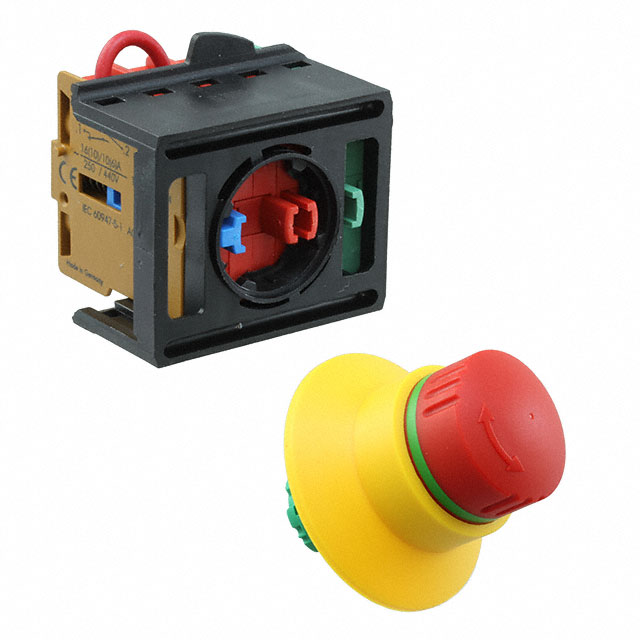

SWITCH ESTOP TWIST RESET 3A 250V

Search across all available documentation for this part.

Active

SICK, Inc.

SWITCH ESTOP TWIST RESET 3A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	6036492

Circuit	3PST-2NC/1NO
Current Rating (Amps)	2 A, 3 A
Features	Status Indicator
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	22.3 mm
Reset Operation	Twist
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	250 V
Voltage Rating - DC	24 V

Part	Circuit	Panel Cutout Dimensions [diameter]	Reset Operation	Features	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Mounting Type	Switch Function	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)
SICK, Inc. 6036492	3PST-2NC/1NO	22.3 mm	Twist	Status Indicator	24 V	250 V	Screw Terminal	Panel Mount Front	Off-On On-Off	IP65 - Dust Tight Water Resistant	70 °C	-30 ░C	2 A 3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH ESTOP TWIST RESET 3A 250V
