Z22U-S15

Active

Panduit Corp

ENCLOSURE STL GRAY 24"L X 11.6"W

Search across all available documentation for this part.

Active

Panduit Corp

ENCLOSURE STL GRAY 24"L X 11.6"W

Technical Specifications

Parameters and characteristics for this part

Part	Material	Ratings	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Container Type	Design	Area (L x W)	Area (L x W)
Panduit Corp Z22U-S11S	Metal Steel	IP66 NEMA 4X	Gray	24 "	11.6 "	609.6 mm	294.64 mm	609.6 mm	24 in	Enclosure	Cover Included	278 in˛	1796 cm˛
Panduit Corp Z22U-S15	Metal Steel	12 UL-508A IP66 NEMA 4	Gray	11.6 "	24 in	294.64 mm	609.6 mm	609.6 mm	24 in	Enclosure	Hinged Door	278 in˛	1796 cm˛
Panduit Corp Z22U-S16S	Metal Steel	IP66 NEMA 4	Gray	24 "	11.6 "	609.6 mm	294.64 mm	609.6 mm	24 in	Enclosure	Cover Included	278 in˛	1796 cm˛
Panduit Corp Z22U-614S		IP66 NEMA 4X	Gray	24 "	11.6 "	609.6 mm	294.64 mm	609.6 mm	24 in	Enclosure	Cover Included	278 in˛	1796 cm˛
Panduit Corp Z22U-S14S	Metal Steel	12 UL-508A IP66 NEMA 4	Gray	11.6 "	24 in	294.64 mm	609.6 mm	609.6 mm	24 in	Enclosure	Hinged Door	278 in˛	1796 cm˛
Panduit Corp Z22U-S14	Metal Steel	12 UL-508A IP66 NEMA 4	Gray	11.6 "	24 in	294.64 mm	609.6 mm	609.6 mm	24 in	Enclosure	Hinged Door	278 in˛	1796 cm˛
Panduit Corp Z22U-615S		IP66 NEMA 4X	Gray	24 "	11.6 "	609.6 mm	294.64 mm	609.6 mm	24 in	Enclosure	Cover Included	278 in˛	1796 cm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

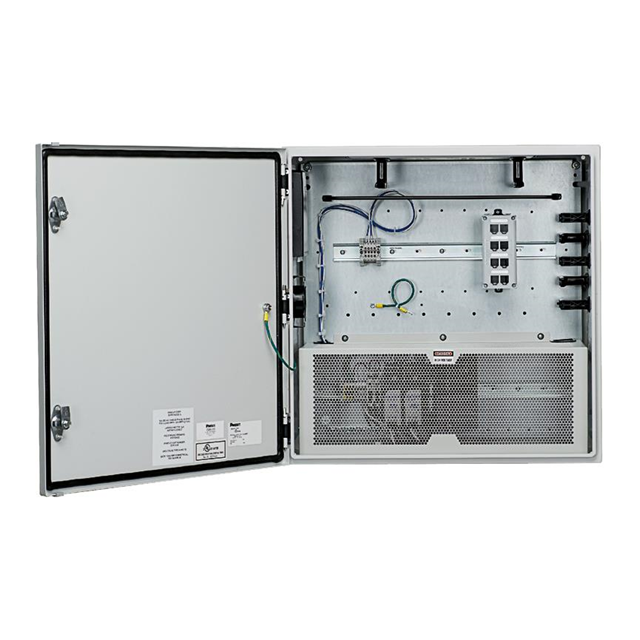

Enclosure Metal, Steel Gray Hinged Door 24.000" L x 11.600" W (609.60mm x 294.64mm) X 24.000" (609.60mm)
