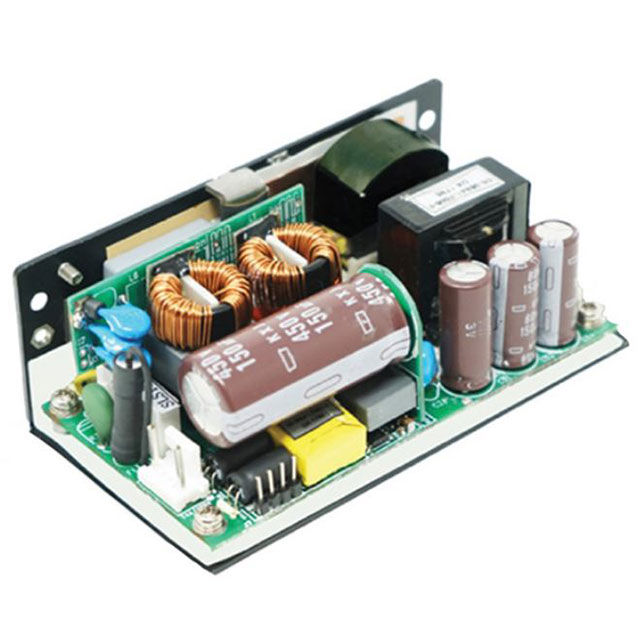

NGB250S12K

Active

SL POWER / Advanced Energy

SWITCHING POWER SUPPLIES MED 250W 12V

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

SWITCHING POWER SUPPLIES MED 250W 12V

Technical Specifications

Parameters and characteristics for this part

Specification	NGB250S12K

Applications	ITE (Commercial), Medical
Approval Agency	cURus, DEMKO, CE
Current - Output 1	14.6 A
Efficiency	90 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-20 °C
Power (Watts)	175 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	35.6 mm
Size / Dimension [z]	1.4 "
Type	Open Frame
Voltage - Isolation	4.5 kV
Voltage - Output 1	12 V

Switching Power Supplies NGB250S15K

Part	Approval Agency	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Type	Applications	Power (Watts)	Minimum Load Required	Number of Outputs	Mounting Type	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Voltage - Output 1
SL POWER / Advanced Energy NGB250S12K	CE cURus DEMKO	14.6 A	-20 °C	80 ¯C	4.5 kV	Open Frame	ITE (Commercial) Medical	175 W		1	Chassis Mount	Adjustable Output Universal Input	4 in	101.6 mm	35.6 mm	1.4 "	2 in	50.8 mm	90 %	12 V
