H759V,GY

Active

Serpac

BOX ABS GRAY 7.2"L X 3.65"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 7.2"L X 3.65"W

Technical Specifications

Parameters and characteristics for this part

Specification	H759V,GY

Area (L x W) [custom]	170 cm²
Area (L x W) [custom]	26.3 in²
Color	Gray
Container Type	Box
Features	Battery Compartment, PCB Supports
Features	9 V
Height [diameter]	1.26 in
Height [diameter]	32 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	7.2 in
Size / Dimension [x]	182.88 mm
Size / Dimension [y]	92.71 mm
Size / Dimension [y]	3.65 in
Thickness	2.03 mm
Thickness	0.08 "
Weight	102.97 g
Weight	0.227 lb

Part	Container Type	Weight	Weight	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height [diameter]	Height [diameter]	Features	Features	Area (L x W) [custom]	Area (L x W) [custom]	Ratings	Material	Material Flammability Rating	Color
Serpac H759V,GY	Box	102.97 g	0.227 lb	2.03 mm	0.08 "	7.2 in	92.71 mm	3.65 in	182.88 mm	1.26 in	32 mm	Battery Compartment PCB Supports	9 V	170 cm²	26.3 in²	IP40	Plastic ABS	UL94 HB	Gray
Serpac H759V,AL	Box	102.97 g	0.227 lb	2.03 mm	0.08 "	7.2 in	92.71 mm	3.65 in	182.88 mm	1.26 in	32 mm	Battery Compartment PCB Supports	9 V	170 cm²	26.3 in²	IP40	Plastic ABS	UL94 HB	Almond

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

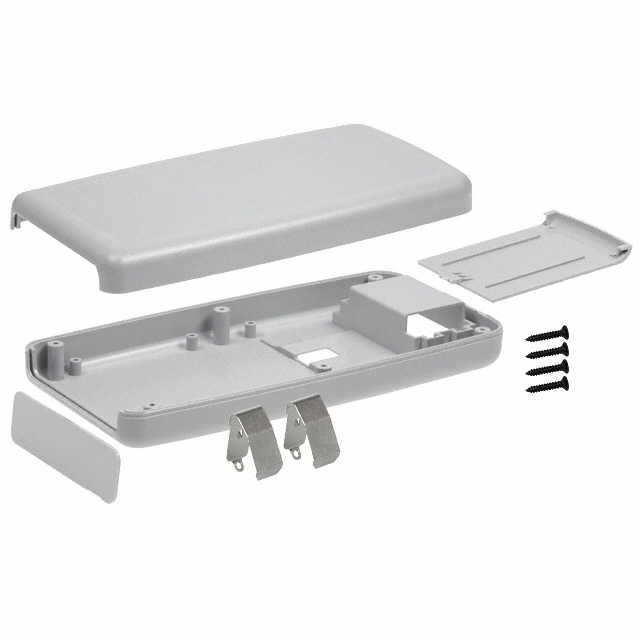

Box Plastic, ABS Gray Hand Held, Split Sides and End Panel(s) 7.200" L x 3.650" W (182.88mm x 92.71mm) X 1.260" (32.00mm)

Technical documentation and resources

No documents available
