UTGX712E14P

Active

Souriau-Sunbank by Eaton

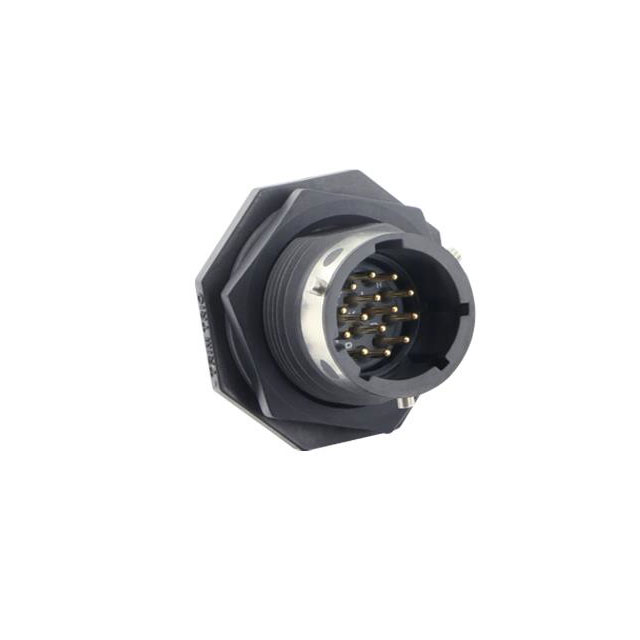

CONN RCPT MALE 14POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

UTGX712E14P

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 14POS SOLDER CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTGX712E14P

Applications	Testing Equipment, Industrial, Automation, Instrumentation
Color	Black
Connector Type	Receptacle, Male Pins
Contact Material	Brass
Current Rating (Amps)	4.5 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	12
Shielding	Unshielded
Voltage Rating	250 VDC

UTGX7 Series

...

Part	Contact Material	Ingress Protection	Mounting Feature	Termination	Applications	Voltage Rating	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Orientation	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shielding	Fastening Type	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Primary Material	Color	Material Flammability Rating	Mounting Type	Number of Positions	Note	Includes	Housing Color	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Type	Contact Type	Contact Size	Contact Shape	Shell Size - Insert	Contact Finish - Mating
Souriau-Sunbank by Eaton UTGX7147PSEK9	Brass	IP68 IP69K	Bulkhead - Front Side Nut	Crimp	Automation Industrial Instrumentation Testing Equipment	500 V	Male Pins Receptacle	1	6	N	UV Resistant	-40 °C	105 ░C	Nylon Polyamide (PA)	Unshielded	Bayonet Lock	10 A	14	7	Plastic	Black	UL94 V-0
Souriau-Sunbank by Eaton UTGX714D7S	Brass	IP68 IP69K	Bulkhead - Front Side Nut	Solder	Automation Industrial Instrumentation Testing Equipment	600 V	Receptacle Female Sockets	1	6	N	UV Resistant	-40 °C	105 ░C	Polychloroprene	Unshielded	Bayonet Lock	12 A	14	7	Plastic	Black	UL94 V-0	Panel Mount Through Hole
Souriau-Sunbank by Eaton UTGX710E98P	Brass	IP68 IP69K	Bulkhead - Front Side Nut		Automation Industrial Instrumentation Testing Equipment	250 VDC	Male Pins Receptacle			N	UV Resistant	-40 °C	105 ░C	Polychloroprene	Unshielded	Bayonet Lock	6 A	98	10	Plastic	Black	UL94 V-0		6
Souriau-Sunbank by Eaton UTGX712E14P	Brass	IP68 IP69K	Bulkhead - Front Side Nut		Automation Industrial Instrumentation Testing Equipment	250 VDC	Male Pins Receptacle			N	UV Resistant	-40 °C	105 ░C	Polychloroprene	Unshielded	Bayonet Lock	4.5 A	14	12	Plastic	Black	UL94 V-0		14
Souriau-Sunbank by Eaton UTGX714E19P	Brass	IP68 IP69K	Bulkhead - Front Side Nut		Automation Industrial Instrumentation Testing Equipment	250 VDC	Male Pins Receptacle			N	UV Resistant	-40 °C	105 ░C	Polychloroprene	Unshielded	Bayonet Lock	4 A			Plastic	Black	UL94 V-0		19
Souriau-Sunbank by Eaton UTGX71419S		IP68 IP69K	Bulkhead - Front Side Nut				Receptacle Housing			N	UV Resistant	-40 °C	105 ░C	Nylon Polyamide (PA)	Unshielded	Bayonet Lock						UL94 V-0		19	Contacts Not Included	1 Connector 1 Nut 1 O-Ring	Black	19	14	For Female Sockets	Crimp	20	Circular
Souriau-Sunbank by Eaton UTGX7124SSCR	Brass	IP68 IP69K	Bulkhead - Front Side Nut	Screw	Automation Industrial Instrumentation Testing Equipment	500 V	Receptacle Female Sockets			N	UV Resistant	-40 °C	105 ░C	Nylon Polyamide (PA)	Unshielded	Bayonet Lock	16 A			Plastic	Black	UL94 V-0		4										12-4	Gold
Souriau-Sunbank by Eaton UTGX714D15S	Brass	IP68 IP69K	Bulkhead - Front Side Nut	Solder	Automation Industrial Instrumentation Testing Equipment	250 VDC 600 V	Receptacle Female Sockets			N	UV Resistant	-40 °C	105 ░C	Polychloroprene	Unshielded	Bayonet Lock	5 A 12 A	15	14	Plastic	Black	UL94 V-0	Panel Mount Through Hole	15
Souriau-Sunbank by Eaton UTGX714D7P32	Brass	IP68 IP69K	Bulkhead - Front Side Nut	Solder	Automation Industrial Instrumentation Testing Equipment	600 V	Male Pins Receptacle	1	6	N	Board Lock UV Resistant	-40 °C	105 ░C	Polychloroprene	Unshielded	Bayonet Lock	12 A	14	7	Plastic	Black	UL94 V-0	Panel Mount Through Hole
Souriau-Sunbank by Eaton UTGX7124PSCR	Brass	IP68 IP69K	Bulkhead - Front Side Nut	Screw	Automation Industrial Instrumentation Testing Equipment	500 V	Male Pins Receptacle			N	UV Resistant	-40 °C	105 ░C	Nylon Polyamide (PA)	Unshielded	Bayonet Lock	16 A			Plastic	Black	UL94 V-0		4											Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 27.49

Description

General part information

UTGX7 Series

14 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available
