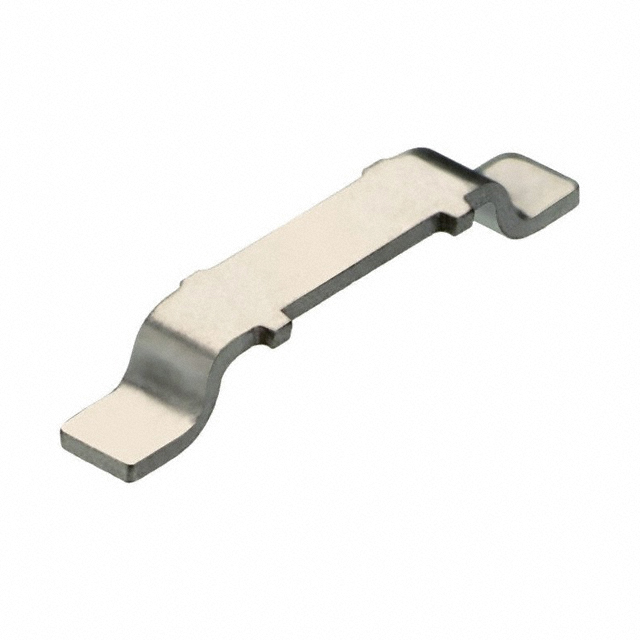

S1621-46

Active

Harwin Inc.

JUMPER, 2POS, 8.1MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

JUMPER, 2POS, 8.1MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	S1621-46

Contact Finish	Tin
Contact Finish Thickness	3 µm
Contact Finish Thickness	118.1 µin
Current Rating (Amps)	10 A
Gender	Non-Gendered
Height [z]	1.8 mm
Height [z]	0.071 in
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.319 in
Pitch [x]	8.1 mm
Type	Non-Insulated

Part	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type	Contact Finish	Gender	Current Rating (Amps)	Height [z]	Height [z]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. S1621-46R	1 x 2	2	Non-Insulated	Tin	Non-Gendered	10 A	1.8 mm	0.071 in	0.319 in	8.1 mm	3 µm	118.1 µin
Harwin Inc. S1621-46	1 x 2	2	Non-Insulated	Tin	Non-Gendered	10 A	1.8 mm	0.071 in	0.319 in	8.1 mm	3 µm	118.1 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Non-Insulated 0.319" (8.10mm) Tin
