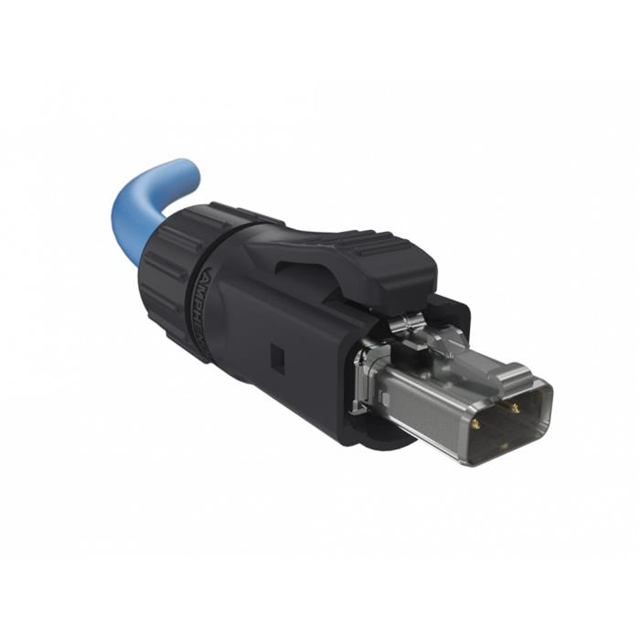

MSPE-P2L0-4A0
ActiveAmphenol ICC (Commercial Products)
MSPE SERIES, IP20 PLUG, LATCH LO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSPE-P2L0-4A0
ActiveAmphenol ICC (Commercial Products)
MSPE SERIES, IP20 PLUG, LATCH LO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSPE-P2L0-4A0 |
|---|---|
| Cable Type | Round Cable, Not Specified |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Housing, Cable Clamp |
| Housing Material | Thermoplastic |
| Length | 1.327 in |
| Length | 33.71 mm |
| Number of Positions/Contacts | 2P2C Single Pair Ethernet (SPE) |
| Shield Material | Stainless Steel |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 60 VDC |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.60 | |
| 10 | $ 4.29 | |||
| 25 | $ 3.87 | |||
| 40 | $ 3.67 | |||
| 80 | $ 3.41 | |||
| 230 | $ 3.05 | |||
| 440 | $ 2.85 | |||
| 945 | $ 2.80 | |||
Description
General part information
MSPE-P Series
Plug Modular Connector 2P2C Single Pair Ethernet (SPE) Position Shielded IDC
