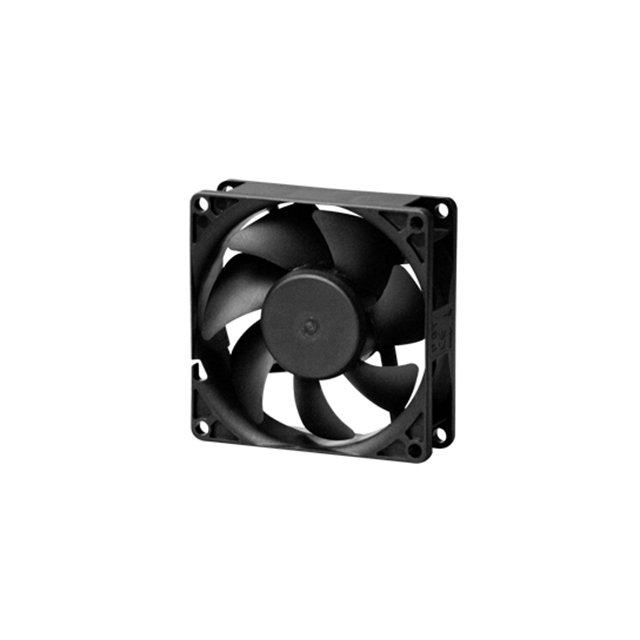

MF80252V1-1000U-A99

Active

Sunon Fans

FAN AXIAL 80X25MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 80X25MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MF80252V1-1000U-A99

Air Flow	1.15 mł/min
Air Flow	41 CFM
Approval Agency	cURus, TUV
Current Rating (Amps)	0.065 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.56 W
RPM	3200 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	44.8 Pa
Static Pressure	0.18 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.167 lb
Weight	75.75 g
Width [y]	25 mm

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Voltage - Rated	Current Rating (Amps)	Power (Watts)	Noise	Material - Blade	Approval Agency	Air Flow	Air Flow	RPM	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Lifetime @ Temp.	Weight	Weight	Width [y]	Termination	Features
Sunon Fans MF80252V1-1000U-A99	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	24 VDC	0.065 A	1.56 W	33 dB(A)	Polybutylene Terephthalate (PBT)	cURus TUV	1.15 mł/min	41 CFM	3200 RPM	80 mm	80 mm	44.8 Pa	0.18 in H2O	70000 Hrs	0.167 lb	75.75 g	25 mm	2 Wire Leads	Auto Restart

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Vapo-Bearing™ 41.0 CFM (1.15m³/min) 2 Wire Leads
