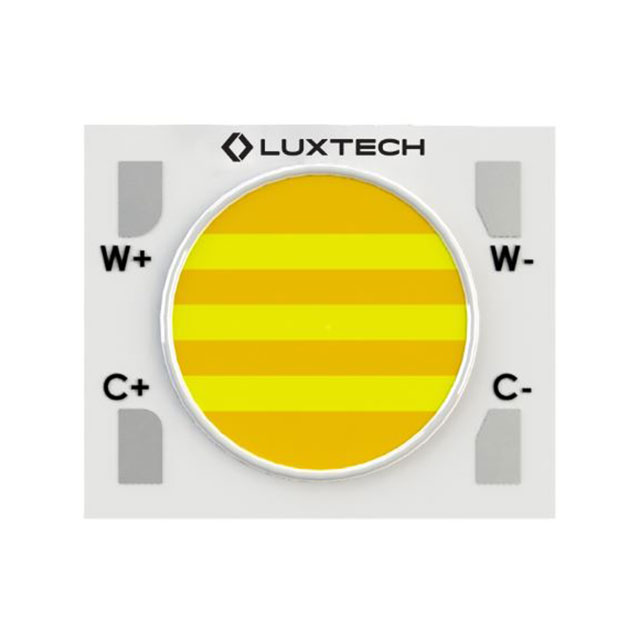

COB-DN-16-2420-27K-65K-90

Active

Luxtech, LLC

LED COB WHITE RECT 6500K

Search across all available documentation for this part.

Active

Luxtech, LLC

LED COB WHITE RECT 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	COB-DN-16-2420-27K-65K-90

CCT (K) [Max]	6500 K
CCT (K) [Min]	2700 K
Color	White, Cool, White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	90
Current - Max [Max]	800 mA
Height [z]	1.6 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	16 mm
Lumens/Watt @ Current - Test	95 lm/W, 97 lm/W
Luminous Flux @ Current/Temperature	2300 lm, 2400 lm
Size / Dimension [x]	24 mm
Size / Dimension [y]	20 mm
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	35.5 V

Part	CRI (Color Rendering Index)	CCT (K) [Max]	CCT (K) [Min]	Configuration	Type	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Color	Lens Type	Lumens/Watt @ Current - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Height [z]
Luxtech, LLC COB-DN-16-2420-27K-65K-90	90	6500 K	2700 K	Rectangle	Chip On Board (COB)	35.5 V	16 mm	White Cool White Warm	Flat	95 lm/W 97 lm/W	800 mA	2300 lm 2400 lm	20 mm	24 mm	1.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) - White, Warm / White, Cool Rectangle
