R6-32X7/8 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 6-32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

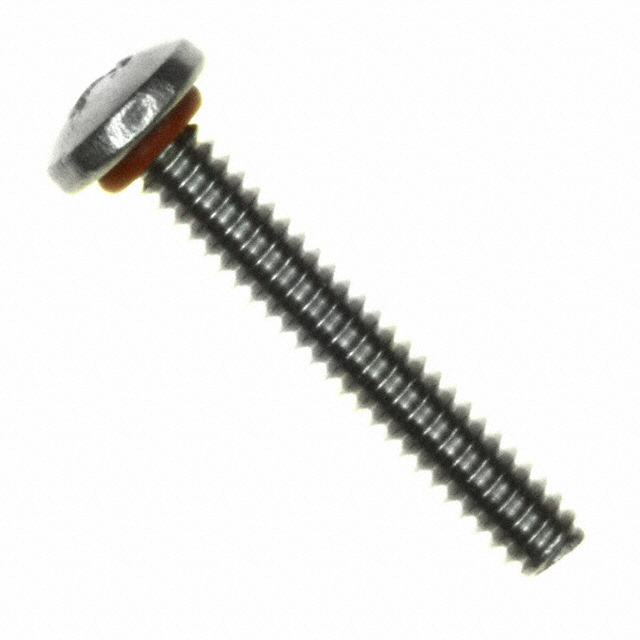

R6-32X7/8 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 6-32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R6-32X7/8 2701

Drive Type	Phillips
Features	Self Sealing
Head Diameter [diameter]	0.294 in
Head Diameter [diameter]	7.47 mm
Head Height [z]	0.097 in
Head Height [z]	2.46 mm
Length - Below Head	0.875 in
Length - Below Head	22.23 mm
Length - Below Head [x]	0.875 in
Length - Overall	24.7 mm
Length - Overall	0.972 in
Material	Stainless Steel
Screw Head Type	Pan Head
Thread Size	#6-32
Type	Machine Screw

R6-32 Series

Part	Drive Type	Head Diameter [diameter]	Head Diameter [diameter]	Features	Type	Length - Overall	Length - Overall [x]	Thread Size	Material	Screw Head Type	Head Height [z]	Head Height [z]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall	Length - Below Head [x]	Length - Overall [x]	Length - Below Head	Length - Below Head [x]	Length - Below Head [x]
APM HEXSEAL R6-32X1/4 2701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw	8.81 mm	0.347 in	#6-32	Stainless Steel	Pan Head	0.097 in	2.46 mm	6.35 mm	0.25 in	0.25 in
APM HEXSEAL R6-32X7/8 2701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw	24.7 mm		#6-32	Stainless Steel	Pan Head	0.097 in	2.46 mm	0.875 in		22.23 mm	0.972 in	0.875 in
APM HEXSEAL R6-32X1 2701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw		1.097 in	#6-32	Stainless Steel	Pan Head	0.097 in	2.46 mm	25.4 mm	1 in				27.86 mm
APM HEXSEAL R6-32X1/2 2701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw		0.597 in	#6-32	Stainless Steel	Pan Head	0.097 in	2.46 mm	12.7 mm	0.5 in				15.16 mm	1/2
APM HEXSEAL R6-32X7/16 2701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw		0.535 in	#6-32	Stainless Steel	Pan Head	0.097 in	2.46 mm	11.13 mm	0.438 "				13.59 mm	7/16
APM HEXSEAL R6-32X5/162701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw			#6-32		Pan Head							0.313 in			5 in	7.95 mm
APM HEXSEAL R6-32X5/8 2701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw		0.722 in	#6-32	Stainless Steel	Pan Head	0.097 in	2.46 mm	15.88 mm	0.625 in	0.625 in			18.34 mm
APM HEXSEAL R6-32X3/8 2701	Phillips	0.294 in	7.47 mm	Self Sealing	Machine Screw		0.472 in	#6-32	Stainless Steel	Pan Head	0.097 in	2.46 mm	0.375 "	0.375 "	9.53 mm			11.99 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.85
		10	$ 0.61
		100	$ 0.48
		1000	$ 0.41
		5000	$ 0.33

Description

General part information

R6-32 Series

#6-32 Pan Head Machine Screw Phillips Drive Stainless Steel
