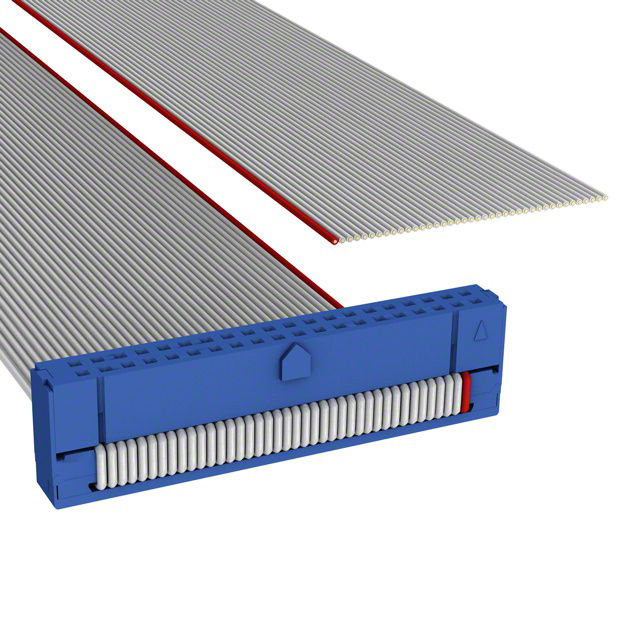

C1DXS-4036G

Active

CW Industries

IDC CABLE - CKR40S/AE40G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR40S/AE40G/X

Technical Specifications

Parameters and characteristics for this part

Specification	C1DXS-4036G

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

Part	Shielding	Number of Rows	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Usage	Number of Positions	Connector Type	Features
CW Industries C1DXS-4036M	Unshielded	2	Multiple Ribbon	IDC	2.54 µm	100 µin	Tin	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Board In	40	Socket to Cable	Polarizing Key Strain Relief
CW Industries C1DXS-4036G	Unshielded	2		IDC	2.54 µm	100 µin	Tin	3 ft	914.4 mm	0.05 "	1.27 mm	0.1 in	2.54 mm	Board In	40	Socket to Cable	Polarizing Key Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
