316-022-420-158
ActiveEDAC Inc.

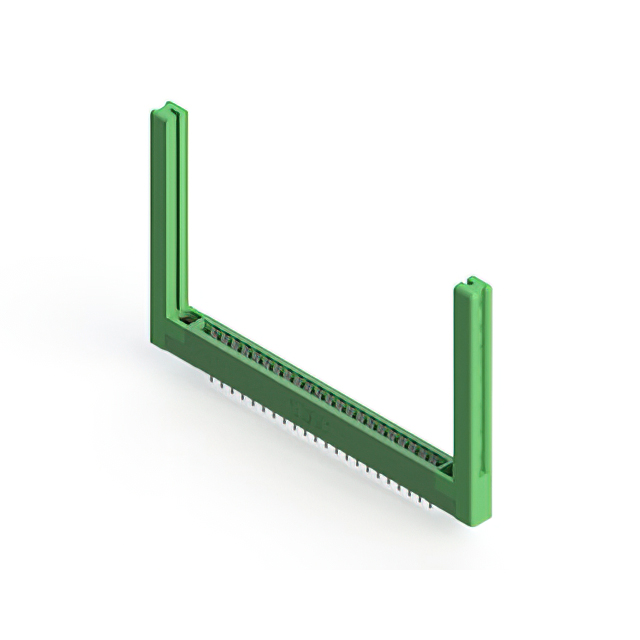

CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
316-022-420-158
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-022-420-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
316-022 Series
| Part | Read Out | Mounting Type | Card Type | Contact Material | Gender | Contact Type | Contact Finish | Number of Positions | Termination | Material - Insulation | Pitch [x] | Pitch [x] | Color | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Flange Feature | Features | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Free Hanging (In-Line) | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Tin | 44 | Solder Eyelet(s) | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | ||||||
EDAC Inc. | Dual | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Gold | 44 | Solder Eyelet(s) | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Dual | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Tin | 44 | Solder Eyelet(s) | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | |||||
EDAC Inc. | Dual | Through Hole | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Gold | 44 | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Dual | Panel Mount Through Hole | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Tin | 44 | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Dual | Panel Mount Through Hole | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Tin | 44 | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | |||
EDAC Inc. | Dual | Panel Mount Through Hole | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Tin | 44 | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Dual | Panel Mount Through Hole | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Tin | 44 | Solder | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Dual | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Gold | 44 | Solder Eyelet(s) | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | ||
EDAC Inc. | Dual | Non Specified - Dual Edge | Copper Alloy | Female | Cantilever | Tin | 44 | Solder Eyelet(s) | Polyester Thermoplastic | 0.156 in | 3.96 mm | Green | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | -40 °C | 105 ░C | 22 | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 16.99 | |
Description
General part information
316-022 Series
44 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
