SNP4GHS0C2

Active

HELLERMANNTYTON

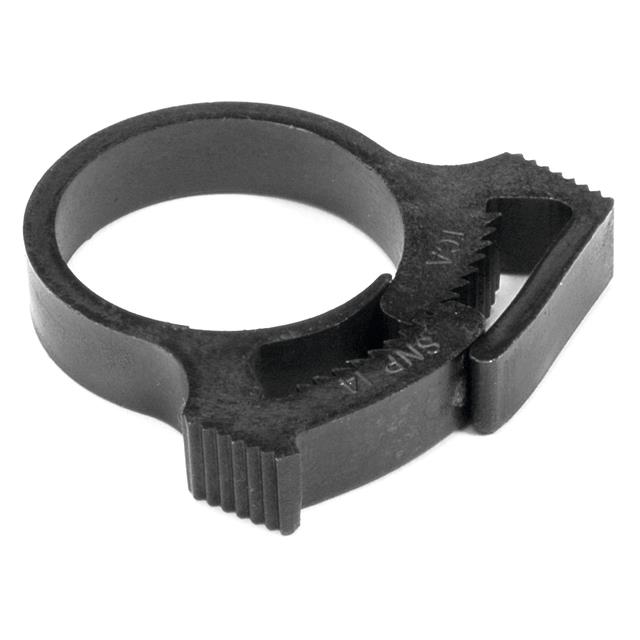

FASTENER, RELEASABLE, SNAPPER HOSE CLAMP, 11 MM, NYLON 6.6 (POLYAMIDE 6.6), GLASS FILLED, BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

FASTENER, RELEASABLE, SNAPPER HOSE CLAMP, 11 MM, NYLON 6.6 (POLYAMIDE 6.6), GLASS FILLED, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP4GHS0C2

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	19.28 mm
Length [Max]	0.756 in
Length [Min]	13.44 mm
Length [Min]	0.529 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	1.7 mm
Material Thickness	0.067 in
Opening Size [Max] [z]	0.462 in
Opening Size [Max] [z]	11.73 mm
Opening Size [Min] [z]	10.49 mm
Opening Size [Min] [z]	0.413 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	5.97 mm
Width [x]	0.235 in

Part	Color	Length [Max]	Length [Min]	Length [Max]	Length [Min]	Material Thickness	Material Thickness	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Features	Material Flammability Rating	Material	Width [x]	Width [x]	Type Attributes	Type
HELLERMANNTYTON SNP4GHS0M4	Black	19.28 mm	13.44 mm	0.756 in	0.529 in	1.7 mm	0.067 in	0.462 in	10.49 mm	0.413 in	11.73 mm	Heat Stabilized Impact Resistant	UL94 HB	Polyamide (PA66) Nylon 6/6 Glass Filled	5.97 mm	0.235 in	Push-Fit	Clamp Hose
HELLERMANNTYTON SNP4GHS0C2	Black	19.28 mm	13.44 mm	0.756 in	0.529 in	1.7 mm	0.067 in	0.462 in	10.49 mm	0.413 in	11.73 mm	Heat Stabilized Impact Resistant	UL94 HB	Polyamide (PA66) Nylon 6/6 Glass Filled	5.97 mm	0.235 in	Push-Fit	Clamp Hose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clamp, Hose Black 0.413" ~ 0.462" (10.49mm ~ 11.73mm)
