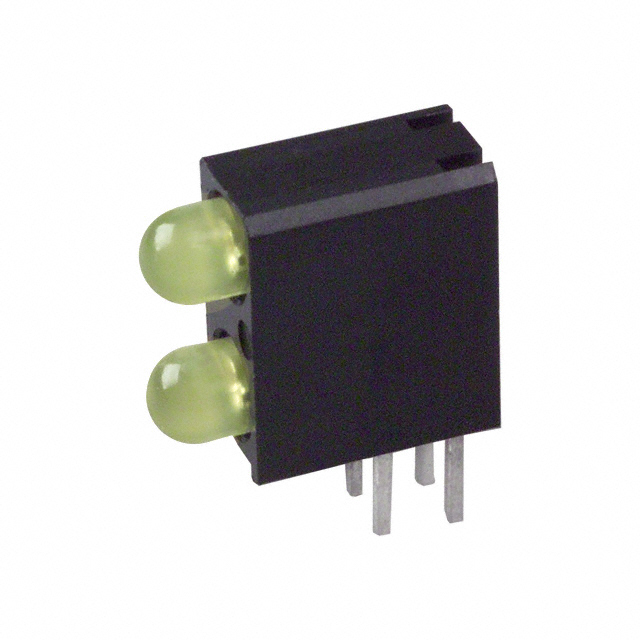

5530133F

Active

DIALIGHT

LED CBI 3MM BI-LVL YELLOW RA

Search across all available documentation for this part.

Active

DIALIGHT

LED CBI 3MM BI-LVL YELLOW RA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Millicandela Rating	Wavelength - Peak	Lens Type	Mounting Type	Current	Viewing Angle	Configuration	Color	Lens Size	Lens Size	Lens Style	Configuration [z]	Configuration [y]
DIALIGHT 5530133F	2.1 V	6.3 mcd	585 nm	Diffused Tinted	Through Hole Right Angle	10 mA	45 °	2 High	Yellow (x 2)
DIALIGHT 5530133004F	2.1 V	6.3 mcd	585 nm	Diffused Tinted	Through Hole Right Angle		45 °		Yellow (x 8)	3 mm	T-1	Round with Domed Top	2	4
DIALIGHT 5530133807F					Through Hole Right Angle					3 mm	T-1	Round with Domed Top
DIALIGHT 5530133805F					Through Hole Right Angle					3 mm	T-1	Round with Domed Top
DIALIGHT 5530133400F	2.1 V	10 mcd	585 nm	Diffused Tinted	Through Hole Right Angle		60 °	2 High	Yellow (x 2)	3 mm	T-1	Round with Domed Top
DIALIGHT 5530133300F	2.1 V	6.3 mcd	585 nm	Diffused Tinted	Through Hole Right Angle	10 mA	45 °	2 High	Yellow (x 2)
DIALIGHT 5530133410F	2.1 V	6.3 mcd	585 nm	Diffused Tinted	Through Hole Right Angle		45 °	2 High	Yellow (x 2)	3 mm	T-1	Round with Domed Top
DIALIGHT 5530133808F					Through Hole Right Angle
DIALIGHT 5530133006F	2.1 V	6.3 mcd	585 nm	Diffused Tinted	Through Hole Right Angle		45 °		Yellow (x 12)	3 mm	T-1	Round with Domed Top	2	6
DIALIGHT 5530133801F	2.1 V	7.4 mcd	585 nm		Through Hole Right Angle			2 High	Yellow (x 2)	3 mm	T-1	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Yellow (x 2) Diffused, Tinted 2.1V 10mA Through Hole, Right Angle
