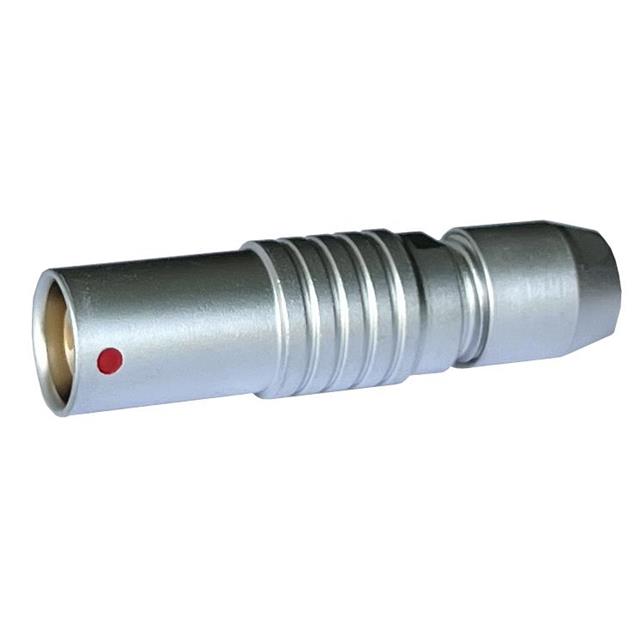

MMI-M1FG05S52

Active

Adam Tech

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MMI-M1FG05S52

Active

Adam Tech

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMI-M1FG05S52

Cable Opening [custom]	11.3 mm
Cable Opening [custom]	0.445 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Unshielded
Voltage Rating	250 VDC

MMI-M1FG Series

Part	Connector Type	Shell Finish	Ingress Protection	Number of Positions	Color	Shielding	Insert Material	Voltage Rating	Shell Material	Orientation	Contact Finish - Mating	Primary Material	Fastening Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Mounting Type	Features
Adam Tech MMI-M1FG08S62	Female Sockets Plug	Chrome	IP50	8	Silver	Unshielded	Polyetheretherketone (PEEK)	200 V	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	5 A	Free Hanging (In-Line)
Adam Tech MMI-M1FG10S62	Female Sockets Plug	Chrome	IP50	10	Silver	Unshielded	Polyetheretherketone (PEEK)	200 V	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	2 A	Free Hanging (In-Line)
Adam Tech MMI-M1FG05S52	Female Sockets Plug	Chrome	IP50		Silver	Unshielded	Polyetheretherketone (PEEK)	250 VDC	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	7 A	Free Hanging (In-Line)
Adam Tech MMI-M1FG02S52-IP67	Female Sockets Plug	Chrome	IP67 - Dust Tight Waterproof	2	Silver	Unshielded	Polyetheretherketone (PEEK)	300 VDC	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C			9 A	Free Hanging (In-Line)
Adam Tech MMI-M1FG02S52	Female Sockets Plug	Chrome	IP50	2	Silver	Unshielded	Polyetheretherketone (PEEK)	300 VDC	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	9 A	Free Hanging (In-Line)
Adam Tech MMI-M1FG04S52B	Female Sockets Plug	Chrome	IP50	4	Silver	Unshielded	Polyphenylene Sulfide (PPS)	250 VDC	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	8 A	Free Hanging (In-Line)	Backshell
Adam Tech MMI-M1FG05S52B-IP67	Female Sockets Plug	Chrome	IP67 - Dust Tight Waterproof		Silver	Unshielded	Polyphenylene Sulfide (PPS)	250 VDC	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C			7 A	Free Hanging (In-Line)	Backshell Strain Relief
Adam Tech MMI-M1FG06S52	Female Sockets Plug	Chrome	IP50	6	Silver	Unshielded	Polyetheretherketone (PEEK)	200 V	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	5 A	Free Hanging (In-Line)
Adam Tech MMI-M1FG02S52B	Female Sockets Plug	Chrome	IP50	2	Silver	Unshielded	Polyphenylene Sulfide (PPS)	300 VDC	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	9 A	Free Hanging (In-Line)	Backshell
Adam Tech MMI-M1FG05S52B	Female Sockets Plug	Chrome	IP50		Silver	Unshielded	Polyphenylene Sulfide (PPS)	250 VDC	Brass	G	Gold	Metal	Push-Pull	Brass	-55 °C	150 °C	11.3 mm	0.445 in	7 A	Free Hanging (In-Line)	Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 24.35
		10	$ 18.77
		30	$ 16.67
		50	$ 15.80
		100	$ 14.71
		250	$ 13.43
		500	$ 12.57

Description

General part information

MMI-M1FG Series

5 Position Circular Connector Plug, Female Sockets Solder Cup
