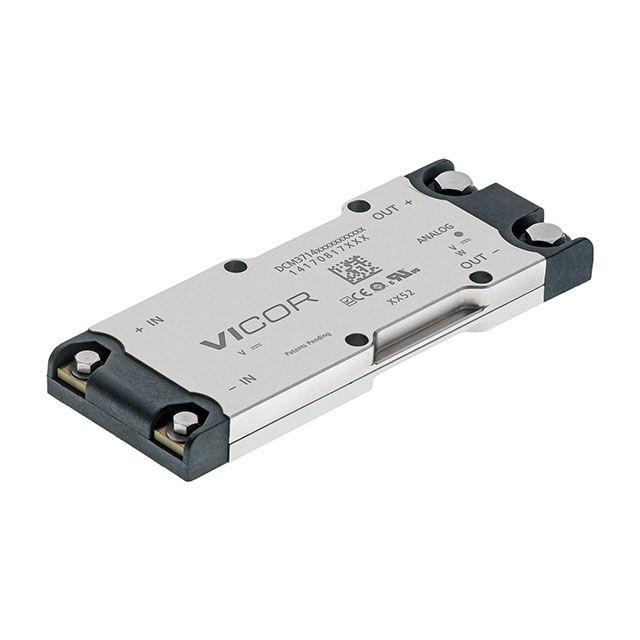

DCM3714BD2H53E0C09

Active

Vicor Corporation

DC DC CONVERTER 48V 500W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DCM3714BD2H53E0C09

Active

Vicor Corporation

DC DC CONVERTER 48V 500W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCM3714BD2H53E0C09

Applications	ITE (Commercial)
Current - Output (Max) [Max]	10.42 A
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Package / Case	9-DIP Module
Power (Watts)	500 W
Size / Dimension [x]	3.74 "
Size / Dimension [x]	95.1 mm
Size / Dimension [y]	35.5 mm
Size / Dimension [y]	1.4 in
Size / Dimension [z]	0.37 in
Size / Dimension [z]	9.3 mm
Type	Isolated Module
Voltage - Input (Min) [Min]	200 V
Voltage - Isolation	2.121 kV
Voltage - Output 1	48 V

DCM3714 Series

Part	Package / Case	Type	Voltage - Output 1	Features	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Efficiency	Approval Agency	Standard Number	Voltage - Input (Max) [Max]
Vicor Corporation DCM3714BD2K06B5M09
Vicor Corporation DCM3714BD2K31E0C09	9-DIP Module	Isolated Module	28 V	OCP OTP OVP Remote On/Off SCP UVLO	2.121 kV	-20 C	125 °C	17.86 A	1	160 V	ITE (Commercial)	Through Hole	97.3 mm	35.5 mm	0.37 in	9.3 mm	1.4 in	3.83 "	500 W	93.6 %
Vicor Corporation DCM3714VD2K26E0M01		Enclosed	24 V		2.121 kV	-55 °C	100 °C	20.83 A	1	160 V	ITE (Commercial)	Chassis Mount	95.3 mm	35.6 mm	0.37 in	9.4 mm	1.4 in	3.75 in	500 W	91.9 %	CE cTUVus cURus	60950-1
Vicor Corporation DCM3714BD2H53E0C09	9-DIP Module	Isolated Module	48 V	OCP OTP OVP Remote On/Off SCP UVLO	2.121 kV	-20 C	125 °C	10.42 A	1	200 V	ITE (Commercial)	Through Hole	95.1 mm	35.5 mm	0.37 in	9.3 mm	1.4 in	3.74 "	500 W
Vicor Corporation DCM3714VD2J13D0C01		Enclosed	12 V			-20 C	100 °C	33.3 A	1	200 V	ITE (Commercial)	Chassis Mount	95.1 mm	35.5 mm	0.37 in	9.3 mm	1.4 in	3.75 in		93.2 %	CE		400 V
Vicor Corporation DCM3714BD2H53E0T05	9-DIP Module	Isolated Module	48 V	OCP OTP OVP Remote On/Off SCP UVLO	2.121 kV	-40 °C	125 °C	10.42 A	1	200 V	ITE (Commercial)	Through Hole	95.1 mm	35.5 mm	0.37 in	9.3 mm	1.4 in	3.74 "	500 W
Vicor Corporation DCM3714VD2K13E0C01		Enclosed	12 V			-20 C	100 °C	41.67 A	1	160 V	ITE (Commercial)	Chassis Mount	95.1 mm	35.5 mm	0.37 in	9.3 mm	1.4 in	3.74 "	500 W	92 %	CE cTUVus
Vicor Corporation DCM3714BD2K13E0T09	9-DIP Module	Isolated Module	12 V	OCP OTP OVP Remote On/Off SCP UVLO	2.121 kV	-40 °C	125 °C	41.67 A	1	160 V	ITE (Commercial)	Through Hole	97.3 mm	35.5 mm	0.37 in	9.3 mm	1.4 in	3.83 "	500 W	92 %
Vicor Corporation DCM3714BD2K13E0C09	9-DIP Module	Isolated Module	12 V	OCP OTP OVP Remote On/Off SCP UVLO	2.121 kV	-20 C	125 °C	41.67 A	1	160 V	ITE (Commercial)	Through Hole	97.3 mm	35.5 mm	0.37 in	9.3 mm	1.4 in	3.83 "	500 W	92 %
Vicor Corporation DCM3714BD2K26E0C09

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 821.76

Description

General part information

DCM3714 Series

Isolated Module DC DC Converter 1 Output 48V 10.42A 200V - 420V Input

Documents

Technical documentation and resources
