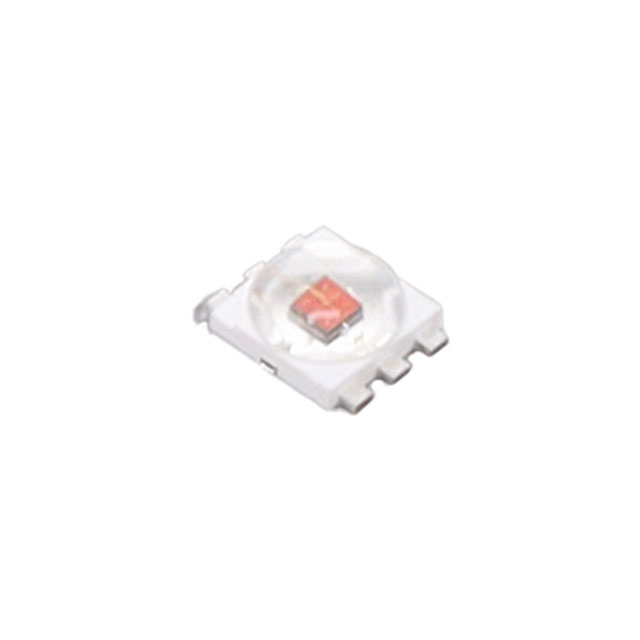

ASMT-JA30-ARS01
ActiveBroadcom Limited
LED AMBER 592NM 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASMT-JA30-ARS01
ActiveBroadcom Limited
LED AMBER 592NM 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMT-JA30-ARS01 |
|---|---|
| Color | Amber |
| Current - Max [Max] | 700 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] | 1.95 mm |
| Height - Seated (Max) [Max] | 0.077 in |
| Lumens/Watt @ Current - Test | 73 lm/W |
| Luminous Flux @ Current/Temperature | 54 lm |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Lead Exposed Pad |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [y] | 0.157 in |
| Size / Dimension [y] | 4 mm |
| Thermal Resistance of Package [diameter] | 9 °C/W |
| Viewing Angle | 165 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength [Max] | 597 nm |
| Wavelength [Min] | 587 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.64 | |
| 10 | $ 3.19 | |||
| 100 | $ 2.44 | |||
| Tape & Reel (TR) | 500 | $ 2.15 | ||
| 1000 | $ 2.06 | |||
| 1500 | $ 2.01 | |||
| 2500 | $ 1.96 | |||
| 3500 | $ 1.93 | |||
| 5000 | $ 1.92 | |||
Description
General part information
ASMT-JA30 Series
LED Lighting Color - Amber 592nm (587nm ~ 597nm) 6-SMD, Flat Lead Exposed Pad
