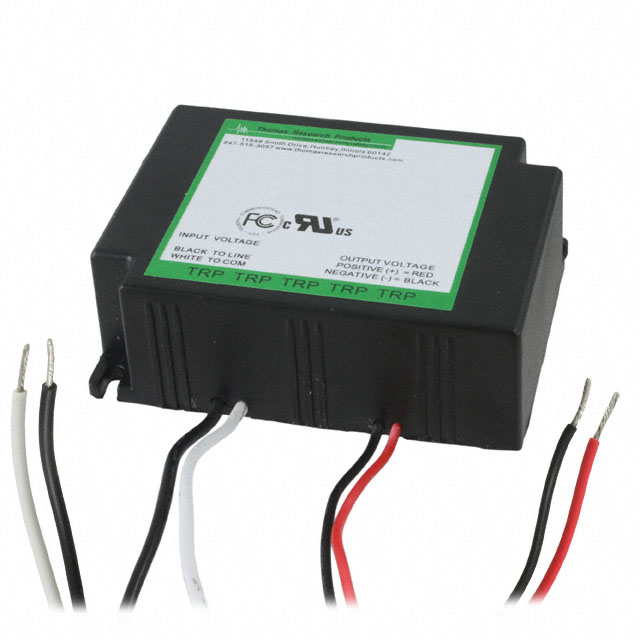

LED40W-022-C1820
ObsoleteThomas Research Products
LED DRIVER CC AC/DC 7-22V 1.82A
Deep-Dive with AI
Search across all available documentation for this part.
LED40W-022-C1820
ObsoleteThomas Research Products
LED DRIVER CC AC/DC 7-22V 1.82A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LED40W-022-C1820 |
|---|---|
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 1.82 A |
| Efficiency | 86 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 40 W |
| Ratings | NEMA 4, IP66 |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [y] | 70 mm |
| Size / Dimension [y] | 2.76 in |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Output [Max] | 22 V |
| Voltage - Output [Min] | 11 V |
| Weight | 323.41 g |
| Weight | 0.713 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 14.82 | |
| 5 | $ 13.75 | |||
| 10 | $ 13.31 | |||
| 25 | $ 12.75 | |||
| 50 | $ 12.35 | |||
Description
General part information
LED40W Series
1.82A 11 ~ 22V Constant Current LED Driver AC DC Converter Topology 1 Output
