MP5424GRM-0000-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
5V PMIC WITH FOUR 4.5A/2.5A/4.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP5424GRM-0000-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
5V PMIC WITH FOUR 4.5A/2.5A/4.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP5424GRM-0000-Z |
|---|---|
| Frequency - Switching | 1.1 MHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

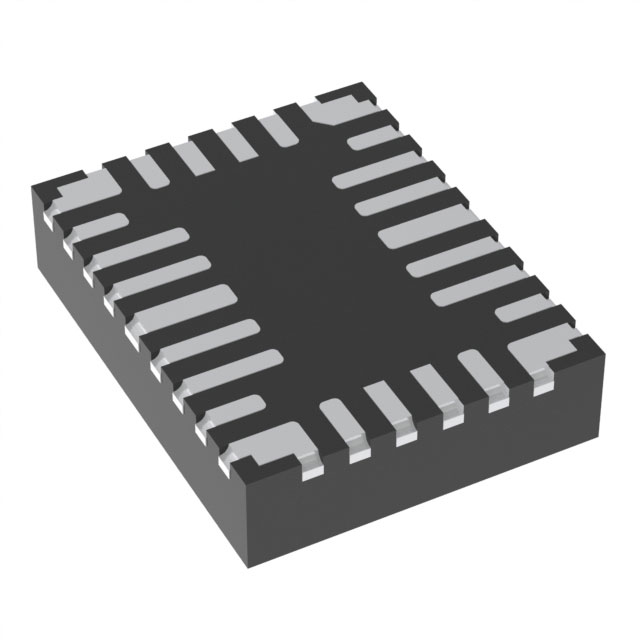

| Package / Case | 26-PowerVFQFN |
| Supplier Device Package | 26-QFN (3.5x4.5) |
| Topology [custom] | Linear (LDO) (3), Step-Down (Buck) Synchronous (4) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
| Voltage/Current - Output 1 | Programmable |
| Voltage/Current - Output 1 | 4.5 A |
| Voltage/Current - Output 1 [Max] | 3.58 V |
| Voltage/Current - Output 1 [Min] | 0.4 V |
| Voltage/Current - Output 2 | 2.5 A |
| Voltage/Current - Output 2 | Programmable |
| Voltage/Current - Output 2 [Max] | 3.58 V |
| Voltage/Current - Output 2 [Min] | 0.4 V |
| Voltage/Current - Output 3 | Programmable |
| Voltage/Current - Output 3 | 4.5 A |
| Voltage/Current - Output 3 [Max] | 3.58 V |
| Voltage/Current - Output 3 [Min] | 0.4 V |
| w/LED Driver | False |
| w/Sequencer | True |
| w/Supervisor | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.04 | |
| 10 | $ 3.63 | |||
| 25 | $ 3.43 | |||
| 100 | $ 2.97 | |||
| 250 | $ 2.82 | |||
| 500 | $ 2.53 | |||
| 1000 | $ 2.14 | |||
| 2500 | $ 2.03 | |||
| Digi-Reel® | 1 | $ 4.04 | ||
| 10 | $ 3.63 | |||
| 25 | $ 3.43 | |||
| 100 | $ 2.97 | |||
| 250 | $ 2.82 | |||
| 500 | $ 2.53 | |||
| 1000 | $ 2.14 | |||
| 2500 | $ 2.03 | |||
Description
General part information
MP5424 Series
PMIC - Voltage Regulators - Linear Switching 8 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (3) 1.1MHz 26-QFN (3.5x4.5)
