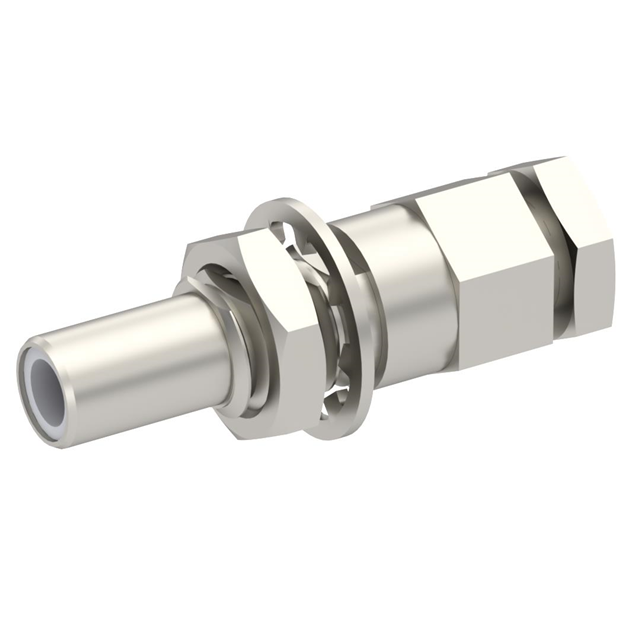

3003-7551-003

Active

Radiall USA, Inc.

SLB / STRAIGHT JACK MALE CLAMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SLB / STRAIGHT JACK MALE CLAMP T

Technical Specifications

Parameters and characteristics for this part

Specification	3003-7551-003

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SLB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Number of Ports	Shield Termination	Housing Color	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Body Material	Center Contact Plating	Voltage Rating	Mating Cycles	Connector Style	Center Contact Material	Body Finish	Dielectric Material	Insertion Loss	Impedance	Frequency - Max [Max]	Mounting Feature	Fastening Type	Connector Type
Radiall USA, Inc. 3003-7551-003	1	Clamp	Silver	Solder	-65 ░C	165 °C	188 316 RG-174	Brass	Gold	335 V	500	SLB	Brass	Nickel	Polytetrafluoroethylene (PTFE)	0.3 dB	50 Ohms	4 GHz	Bulkhead - Front Side Nut	Snap-On	Jack Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.94

General part information

SLB Connector Jack, Male Pin 50 Ohms Panel Mount Solder
