CA-DK10-16-50.8-A-44-88
ActiveAdam Tech
CABLE FFC/FPC 16POS 1MM 2"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA-DK10-16-50.8-A-44-88
ActiveAdam Tech
CABLE FFC/FPC 16POS 1MM 2"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-DK10-16-50.8-A-44-88 |
|---|---|
| Cable Type | FPC, FFC |
| Length | 50.8 mm |
| Length | 2 in |
| Length - Exposed Ends [x] | 0.315 in |
| Length - Exposed Ends [x] | 8 mm |
| Number of Conductors | 16 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination Style | Backers on Both Sides, Top on Both Sides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.09 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| 2500 | $ 0.45 | |||
Description
General part information
CA-DK10 Series

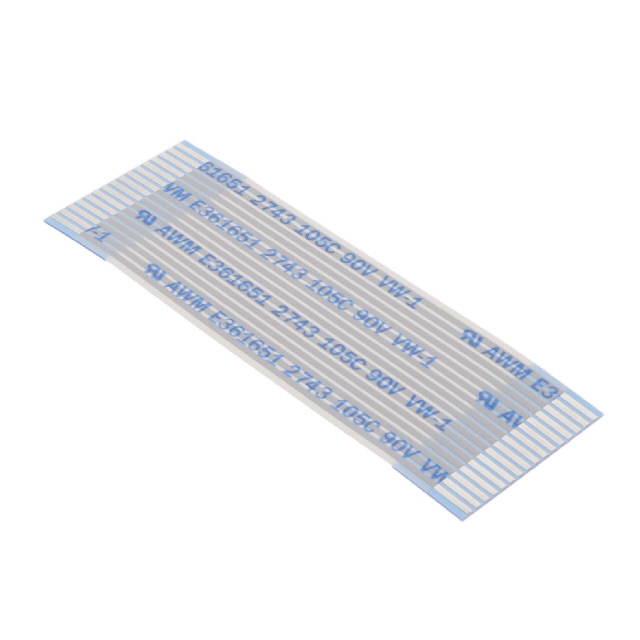

16 Position FFC, FPC Cable 0.039" (1.00mm) 2.000" (50.80mm)
Documents
Technical documentation and resources
