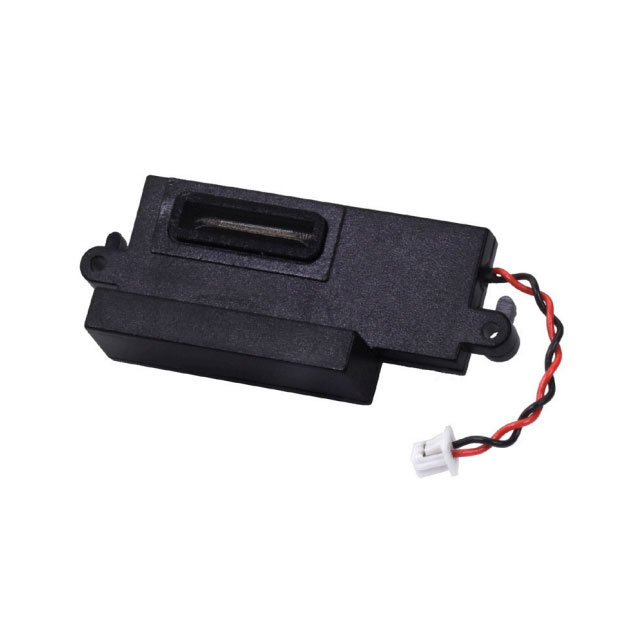

CES-361810-18PM
ActiveCUI Devices
SPEAKER 8OHM 1W TOP PORT 90.5DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CES-361810-18PM |
|---|---|
| Distortion Rating | 10 % |
| Efficiency - dBA | 90.5 dBA |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1000 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 800 Hz |
| Height - Seated (Max) | 10.7 mm |
| Height - Seated (Max) [Max] [z] | 0.421 in |
| Impedance | 8 Ohms |
| Material - Cone | Polyetheretherketone (PEEK) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Top |
| Power - Max [Max] | 1.2 W |
| Power - Rated | 1 W |
| Shape | Rectangular |
| Size / Dimension [x] | 1.61 " |
| Size / Dimension [x] | 40.9 mm |
| Size / Dimension [y] | 0.728 in |
| Size / Dimension [y] | 18.5 mm |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | Enclosure Included, General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.16 | |
| 10 | $ 3.44 | |||
| 28 | $ 3.34 | |||
Description
General part information
CES-361810 Series
8 Ohms General Purpose, Enclosure Included Speaker 1 W 800 Hz ~ 10 kHz Top Rectangular
