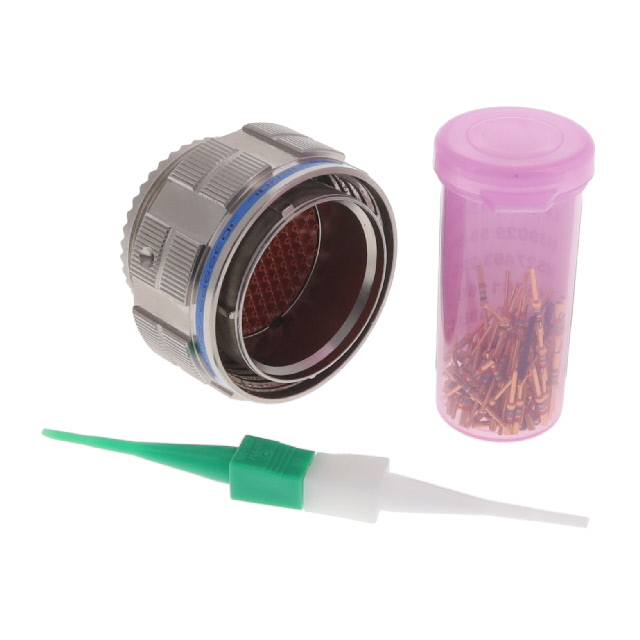

D38999/26FH35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 100POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FH35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 100POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FH35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	100
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	23
Shell Size, MIL	H
Shielding	Shielded
Termination	Crimp

D38999/26FH Series

Part	Features	Color	Number of Positions	Applications	Orientation	Ingress Protection	Contact Material	Shielding	Termination	Mounting Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Finish	Grade	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Qualification	Shell Material	Shell Size, MIL
Amphenol Aerospace Operations D38999/26FH35PN	Coupling Nut	Silver	100	Aerospace Aviation Marine Military	N	Environment Resistant	Copper Alloy	Shielded	Crimp	Free Hanging (In-Line)	23	35	Electroless Nickel	Military	Metal	-65 ░C	200 °C	Male Pins Plug	1.27 µm	50 µin	Gold	MIL-DTL-38999 Series III	Aluminum	H
Amphenol Aerospace Operations D38999/26FH35HN	Coupling Nut	Silver	100	Aerospace Aviation Military	N	Environment Resistant	Copper Alloy	Shielded	Crimp	Free Hanging (In-Line)	23	35	Electroless Nickel	Military	Metal	-65 ░C	200 °C	Male Pins Plug	2.54 çm	100 çin	Gold	MIL-DTL-38999 Series III	Aluminum	H
Amphenol Aerospace Operations D38999/26FH35JN	Coupling Nut	Silver	100	Aerospace Aviation Military	N	Environment Resistant	Copper Alloy	Shielded	Crimp	Free Hanging (In-Line)	23	35	Electroless Nickel	Military	Metal	-65 ░C	200 °C	Female Sockets Plug	2.54 çm	100 çin	Gold	MIL-DTL-38999 Series III	Aluminum	H
Amphenol Aerospace Operations D38999/26FH35SN	Coupling Nut	Silver	100	Aerospace Aviation Marine Military	N	Environment Resistant	Copper Alloy	Shielded	Crimp	Free Hanging (In-Line)	23	35	Electroless Nickel	Military	Metal	-65 ░C	200 °C	Female Sockets Plug	1.27 µm	50 µin	Gold	MIL-DTL-38999 Series III	Aluminum	H
Amphenol Aerospace Operations D38999/26FH21PN	Coupling Nut	Silver	21	Aerospace Aviation Marine Military	N	Environment Resistant	Copper Alloy	Shielded	Crimp	Free Hanging (In-Line)	21	23	Electroless Nickel	Military	Metal	-65 ░C	200 °C	Male Pins Plug	1.27 µm	50 µin	Gold	MIL-DTL-38999 Series III	Aluminum	H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 72.37
		10	$ 70.03
		25	$ 67.85
		50	$ 66.80
		100	$ 62.93
		250	$ 62.03
		500	$ 59.48
		1000	$ 57.90
	Bulk	1	$ 105.73
		1	$ 3646.50
		1	$ 468.41
		10	$ 91.64
		10	$ 369.20
		25	$ 337.97
		25	$ 80.86
		50	$ 72.34
		100	$ 63.44

Description

General part information

D38999/26FH Series

100 Position Circular Connector Plug, Male Pins Crimp
