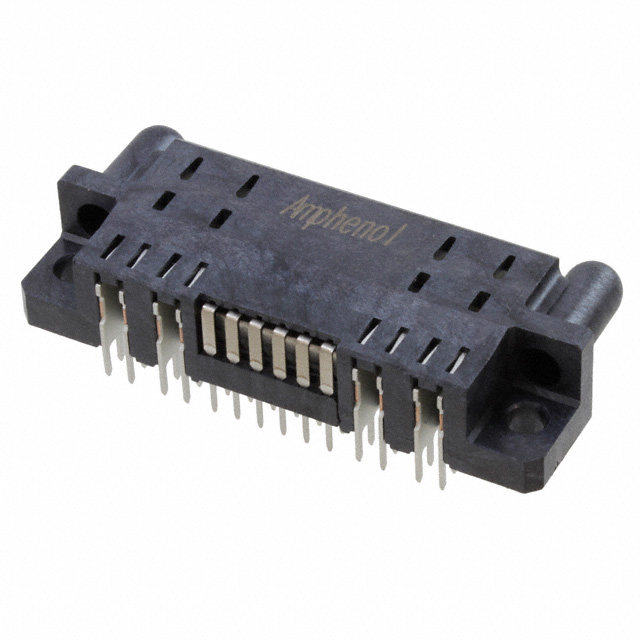

G20F206000HR

Active

Amphenol ICC (Commercial Products)

CONN RCPT 28POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN RCPT 28POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	G20F206000HR

Color	Black
Connector Type	Blade Sockets, Receptacle, Female Sockets
Contact Finish	Gold
Contact Layout, Typical [custom]	24
Contact Layout, Typical [custom]	4
Features	Guide Pin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	28
Number of Positions Loaded	All
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

Part	Number of Positions	Termination	Pitch [x]	Pitch [x]	Contact Finish	Features	Mounting Type	Color	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Type	Material Flammability Rating	Number of Positions Loaded
Amphenol ICC (Commercial Products) G20F206000HR	28	Solder	2.54 mm	0.1 in	Gold	Guide Pin	Through Hole Right Angle	Black	24	4	Blade Sockets Female Sockets Receptacle	UL94 V-0	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

28 Connector Receptacle, Female Sockets and Blade Sockets Through Hole, Right Angle Black
