SHL-Q55-01

Active

Omron Electronics Inc-EMC Div

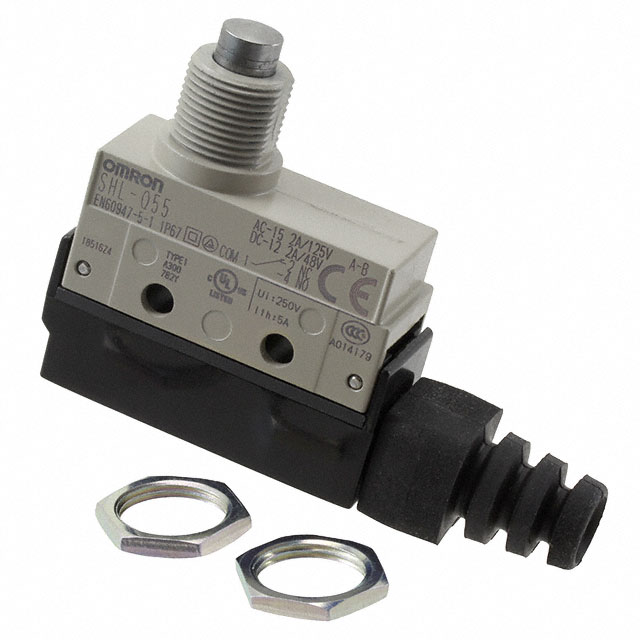

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Overtravel	Overtravel	Circuit	Operating Position [custom]	Operating Position [custom]	Electrical Life	Current Rating (Amps)	Release Force	Voltage Rating - DC	Switch Function	Operating Force	Termination Style	Ingress Protection	Differential Travel	Differential Travel	Actuator Type	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Features
Omron Electronics Inc-EMC Div SHL-Q55-01	10000000 Cycles	2 mm	0.079 in	SPDT	34 mm	1.339 "	500000 Cycles	100 mA	200 gf	30 V	On-Mom	1 kgf	Screw Terminal	IP67 - Dust Tight Waterproof	0.5 mm	0.02 in	Round (Pin Plunger)	1.5 mm	0.06 in	80 C	-10 °C	125 V
Omron Electronics Inc-EMC Div SHL-Q55-L4MR VCTF 3M	10000000 Cycles	2 mm	0.079 in	SPDT	34 mm	1.339 "	500000 Cycles	5 A 10 A	200 gf	30 V	On-Mom	1 kgf	Cable Leads	IP67 - Dust Tight Waterproof	0.5 mm	0.02 in	Round (Pin Plunger)	1.5 mm	0.06 in	80 C	-10 °C	125 V	Status Indicator
Omron Electronics Inc-EMC Div SHL-Q55-MR VCTF 1M	10000000 Cycles	2 mm	0.079 in	SPDT	34 mm	1.339 "	500000 Cycles	5 A 10 A	200 gf	30 V	On-Mom	1 kgf	Cable Leads	IP67 - Dust Tight Waterproof	0.5 mm	0.02 in	Round (Pin Plunger)	1.5 mm	0.06 in	80 C	-10 °C	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Panel Mount
