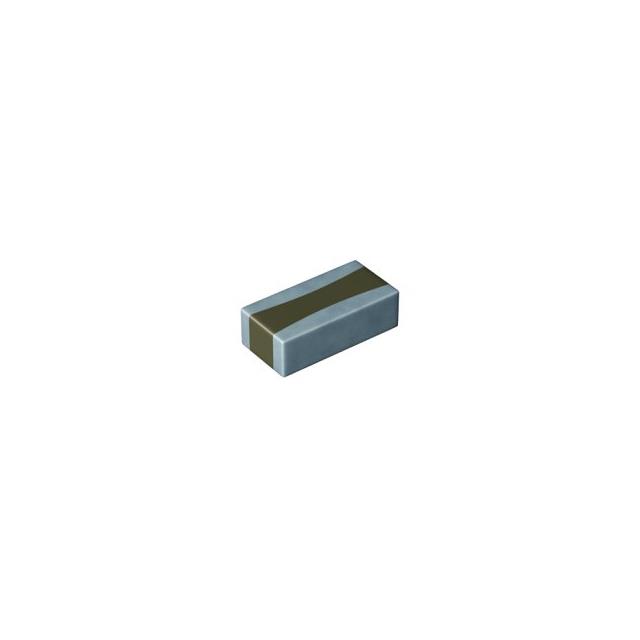

MSRLT219SB5475MTNA01
ActiveTAIYO YUDEN
CAP CER 4.7UF 25V X5R 0508
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSRLT219SB5475MTNA01
ActiveTAIYO YUDEN
CAP CER 4.7UF 25V X5R 0508
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSRLT219SB5475MTNA01 |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 4.7 µF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0508 |
| Package / Case | 1220 Metric |
| Size / Dimension [x] | 1.25 mm |
| Size / Dimension [x] | 0.049 in |
| Size / Dimension [y] | 0.079 in |
| Size / Dimension [y] | 2 mm |
| Temperature Coefficient | X5R |
| Thickness (Max) [Max] | 0.95 mm |
| Thickness (Max) [Max] | 0.037 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.26 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.26 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 4000 | $ 0.09 | ||
| 8000 | $ 0.09 | |||
| 12000 | $ 0.09 | |||
| 28000 | $ 0.08 | |||
| 100000 | $ 0.07 | |||
Description
General part information
MSRLT21 Series
4.7 µF ±20% 25V Ceramic Capacitor X5R 0508 (1220 Metric)
