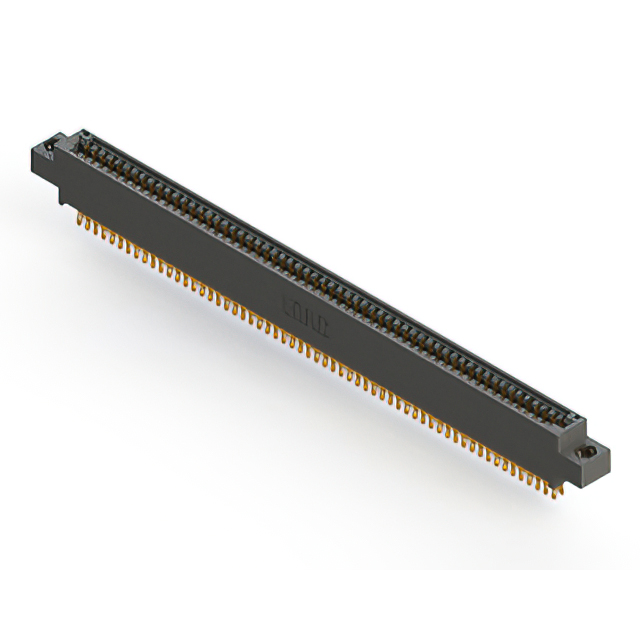

895-118-555-808

Active

EDAC Inc.

CONN EDGE DUAL FML 118POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-118-555-808

Active

EDAC Inc.

CONN EDGE DUAL FML 118POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-118-555-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	118
Number of Positions/Bay/Row [custom]	59
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

895-118 Series

...

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Read Out	Contact Type	Card Type	Mounting Type	Flange Feature	Flange Feature	Contact Finish	Gender	Material - Insulation	Number of Positions/Bay/Row [custom]	Termination	Termination Rows	Color	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 895-118-560-802	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount	3.25 mm	0.128 in	Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2
EDAC Inc. 895-118-560-201	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount			Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2
EDAC Inc. 895-118-544-204		125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Through Hole			Gold	Female	Polyphenylene Sulfide (PPS)	59	Wire Wrap	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 895-118-560-503	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount			Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 895-118-520-802		125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Through Hole	3.25 mm	0.128 in	Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2
EDAC Inc. 895-118-555-503	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount			Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 895-118-560-208	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount			Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 895-118-560-807	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount			Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2		M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-118-555-808	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount			Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 895-118-555-504	Card Extender	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Dual	Cantilever	Non Specified - Dual Edge	Board Edge Straddle Mount			Gold	Female	Polyphenylene Sulfide (PPS)	59	Solder	2	Black	2.54 mm	0.1 in	118	10 Áin	0.25 Ám	Copper Alloy	2	3.96 mm	Top Mount Opening Unthreaded	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 97.50

Description

General part information

895-118 Series

118 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
