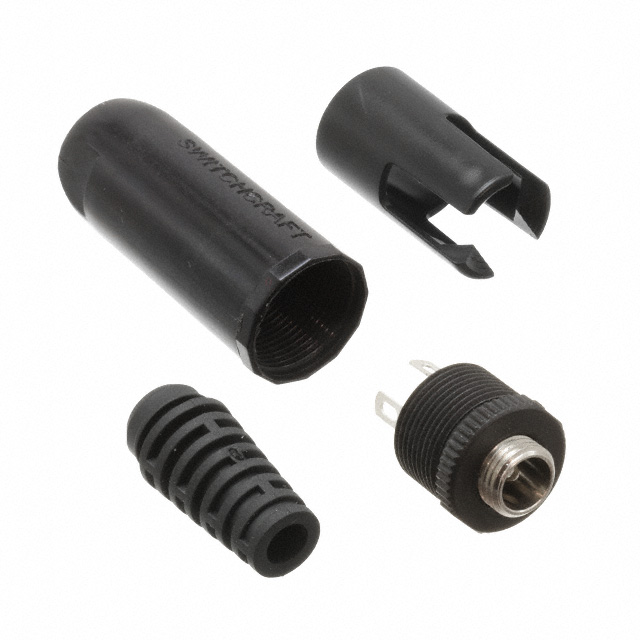

722ACF

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 2.0MM, S

Search across all available documentation for this part.

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 2.0MM, S

Technical Specifications

Parameters and characteristics for this part

Specification	722ACF

Actual Diameter	0.079 "
Actual Diameter	2 mm
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	5 A
Features	Strain Relief
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	2 mm
Industry Recognized Mating Diameter [diameter]	0.079 in
Insulation Color	Black
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	24 VDC

Part	Contact Material - Plating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Contacts	Termination	Body Color	Mounting Type	Gender	Voltage - Rated	Features	Shielding	Current Rating (Amps)	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Contact Material	Connector Type	Body Material	Insulation Color	Actual Diameter	Actual Diameter
Switchcraft Inc. 722ACF	Tin	Thermoplastic	-40 °C	105 ░C	2 Conductors 3 Conductors	Solder Eyelet(s)	Black Silver	Free Hanging (In-Line)	Male	24 VDC	Strain Relief	Unshielded	5 A	2 mm	0.079 in	Copper Alloy	Jack	Copper Alloy	Black	0.079 "	2 mm
Switchcraft Inc. 722AC	Tin	Thermoplastic	-40 °C	105 ░C	2 Conductors 3 Conductors	Solder Eyelet(s)	Black Silver	Free Hanging (In-Line)	Male	24 VDC		Unshielded	5 A	2 mm	0.079 in	Copper Alloy	Jack	Copper Alloy	Black	0.079 "	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079") Free Hanging (In-Line)
