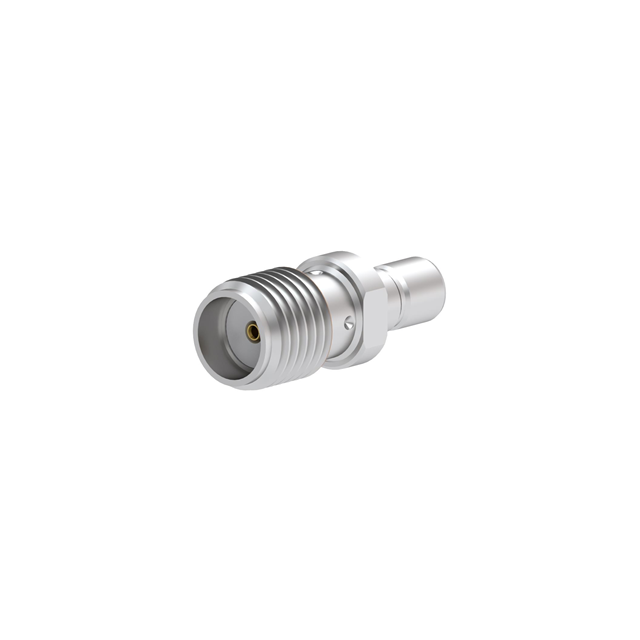

R191201007

Active

Radiall USA, Inc.

COAX ADAPT SMA TO SMB

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT SMA TO SMB

Technical Specifications

Parameters and characteristics for this part

Specification	R191201007

Adapter Series	SMA to SMB
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Male Pin, SMB Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Dielectric Material	Impedance	Mounting Type	Adapter Type	Convert From (Adapter End)	Fastening Type	Style	Mating Cycles	Adapter Series	Frequency - Max [Max]	Convert To (Adapter End)	Center Contact Plating	Body Material	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Conversion Type	Center Gender
Radiall USA, Inc. R191201007	Polytetrafluoroethylene (PTFE)	50 Ohms	Free Hanging (In-Line)	Jack to Jack	Female Socket SMA Jack	Snap-On Threaded	Straight	500	SMA to SMB	4 GHz	Male Pin SMB Jack	Silver	Brass	Beryllium Copper	125 °C	-65 ░C	White Bronze	Between Series
Radiall USA, Inc. R191209000	Polytetrafluoroethylene (PTFE)	50 Ohms	Free Hanging (In-Line)	Plug to Jack	BNC Plug Male Pin	Bayonet Lock Snap-On	Straight	500		4 GHz	Male Pin SMB Jack	Gold	Brass	Brass	125 °C	-65 ░C	Nickel	Between Series	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 209.45

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMB Jack, Male Pin 50 Ohms
