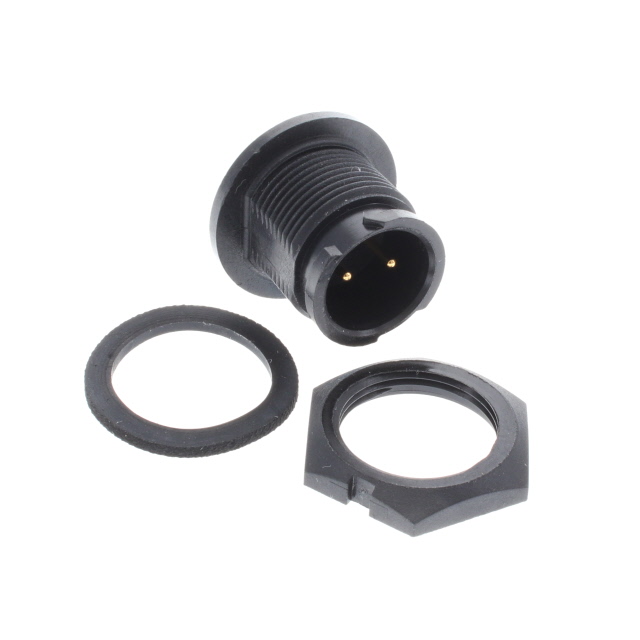

W7382-2PG-P-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7382-2PG-P-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Backshell Material, Plating	Contact Finish - Mating	Contact Material	Number of Positions	Fastening Type	Color	Primary Material	Connector Type	Features	Voltage Rating	Shielding	Insert Material	Applications	Mounting Feature	Orientation	Current Rating (Amps)	Ingress Protection
Conxall/Switchcraft W7382-2PG-P-3ES	85 °C	-40 °C	Thermoplastic	Gold	Copper Alloy	2	Bayonet Lock	Black	Plastic	Male Pins Receptacle	UV Resistant	300 VAC	Unshielded	Thermoplastic	Automotive Communication Systems Instrumentation	Bulkhead - Front Side Nut	Keyed	Varies by Wire Gauge	IP66 IP67 IP68
Conxall/Switchcraft W7382-2SG-P-3ES	85 °C	-40 °C	Thermoplastic	Gold	Copper Alloy	2	Bayonet Lock	Black	Plastic	Receptacle Female Sockets	UV Resistant	300 VAC	Unshielded	Thermoplastic	Automotive Communication Systems Instrumentation	Bulkhead - Front Side Nut	Keyed	Varies by Wire Gauge	IP66 IP67 IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 9.37

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup
