Q-0305H0003009i

Active

Amphenol Custom Cable

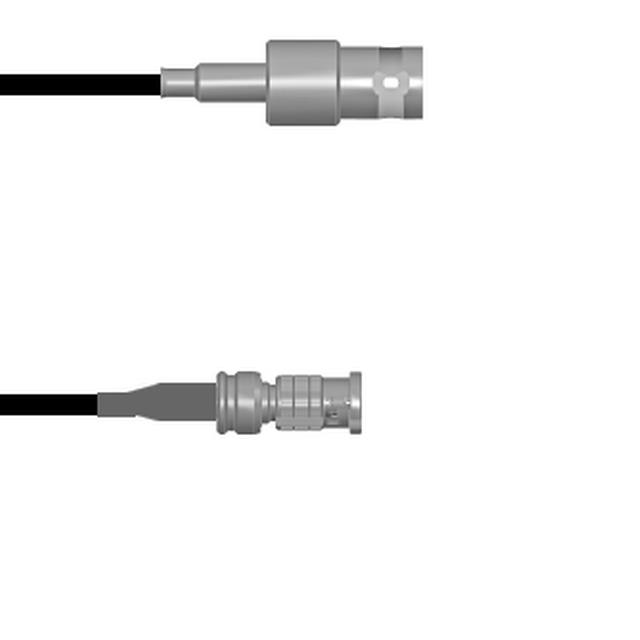

CBL ASSY BNC-HDBNC JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0305H0003009i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0305H0003009i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0305H0 Series

Part	Features	Frequency - Max [Max]	Overall Impedance	2nd Connector Mounting Type	Length	Length	Color	Style	1st Connector Mounting Type	1st Connector	2nd Connector	Cable Type	1st Contact Gender	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0305H0005036i	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	91.44 cm	36 in	Copper	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-316	Female	Male
Amphenol Custom Cable Q-0305H0003003i	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	76.2 mm	3 in	Black	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-174	Female	Male
Amphenol Custom Cable Q-0305H0003009i	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	228.6 mm	9 "	Black	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-174	Female	Male
Amphenol Custom Cable Q-0305H0003.75M	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	750 mm	29.53 "	Black	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-174	Female	Male
Amphenol Custom Cable Q-0305H0005003M	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	3 m	118.1 in	Copper	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-316	Female	Male	9.8 '
Amphenol Custom Cable Q-0305H0005072i	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	1.8 m	72 in	Copper	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-316	Female	Male	6 ft
Amphenol Custom Cable Q-0305H00051.5M	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	1.5 m	59.1 in	Copper	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-316	Female	Male	4.9 ft
Amphenol Custom Cable Q-0305H0003.25M	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)			Black	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-174	Female	Male		9.843 "	250 mm
Amphenol Custom Cable Q-0305H0003060i	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	1.5 m	5 '	Black	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-174	Female	Male	5 ft
Amphenol Custom Cable Q-0305H0005006i	Shielded	4 GHz	50 Ohms	Free Hanging (In-Line)	152.4 mm	6 in	Copper	BNC to HD-BNC	Free Hanging (In-Line)	BNC Jack	HD-BNC Plug	RG-316	Female	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 67.97
		25	$ 66.66
		50	$ 65.34
		100	$ 64.02
		250	$ 62.71

Description

General part information

Q-0305H0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
