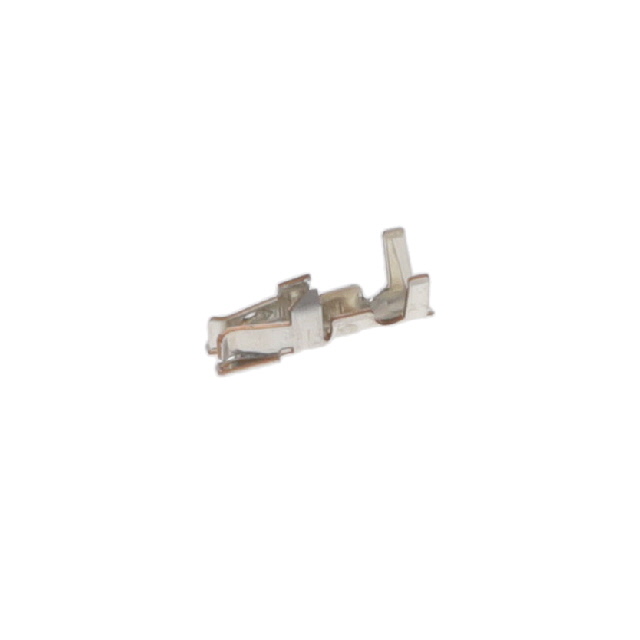

DF51K-30SCF(800)

Active

Hirose Electric USA, Inc.

CONN SKT CRIMP 30AWG TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF51K Series Flyer

DF51K-30SCF(800)

Active

Hirose Electric USA, Inc.

CONN SKT CRIMP 30AWG TIN

Deep-Dive with AI

DocumentsDatasheet DF51K Series Flyer

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF51K-30SCF(800)

Contact Finish	Tin
Contact Finish Thickness	39.4 Áin
Contact Finish Thickness	1 Ám
Contact Termination	Crimp
Pin or Socket	Socket
Type	Stamped
Wire Gauge	30 AWG

DF51KB Series

Headers & Wire Housings 2mm Pitch, Positive lock, Wire-to-Board Connector (UL, C-UL Listed) Socket double row 10 pos

...

Part	Shrouding	Contact Material	Contact Finish - Post	Termination	Number of Positions	Applications	Material Flammability Rating	Style	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Color	Contact Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Current Rating (Amps)	Mounting Type	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Row Spacing	Row Spacing	Note	Color	Pitch [x]	Pitch [x]	Contact Termination	Type	Wire Gauge	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Number of Positions	Features
Hirose Electric USA, Inc. DF51K-6P-2DSA(800)	Shrouded - 4 Wall	Brass	Tin	Solder	6	General Purpose Industrial Medical	UL94 V-0	Board to Cable/Wire	1	0.079 in	2 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	1 µm	39.4 µin	1 çm	39.4 çin	8.4 mm	0.331 in	Black	Male Pin	250 VAC	105 ░C	-55 °C	Header	Varies by Wire Gauge	Through Hole	Latch Holder	0.118 in	3 mm	Square
Hirose Electric USA, Inc. DF51K-28DP-2DS(800)	Shrouded - 4 Wall	Brass	Tin	Solder	28	General Purpose Industrial Medical	UL94 V-0	Board to Cable/Wire	2	0.079 in	2 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	1 µm	39.4 µin	1 çm	39.4 çin			Black	Male Pin	250 VAC	105 ░C	-55 °C	Header	Varies by Wire Gauge	Through Hole Right Angle	Latch Holder	0.118 in	3 mm	Square	0.079 in	2 mm
Hirose Electric USA, Inc. DF51K-18DP-2DS(800)	Shrouded - 4 Wall	Brass	Tin	Solder	18	General Purpose Industrial Medical	UL94 V-0	Board to Cable/Wire	2	0.079 in	2 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	1 µm	39.4 µin	1 çm	39.4 çin			Black	Male Pin	250 VAC	105 ░C	-55 °C	Header	Varies by Wire Gauge	Through Hole Right Angle	Latch Holder	0.118 in	3 mm	Square	0.079 in	2 mm
Hirose Electric USA, Inc. DF51K-4DP-2DSA(805)	Shrouded - 4 Wall	Brass	Gold	Solder	4	General Purpose Industrial Medical	UL94 V-0	Board to Cable/Wire	2	0.079 in	2 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	0.1 µm	3.94 µin	0.1 Ám	3.94 Áin	8.4 mm	0.331 in	Black	Male Pin	250 VAC	105 ░C	-55 °C	Header	Varies by Wire Gauge	Through Hole	Latch Holder	0.118 in	3 mm	Square	0.079 in	2 mm	Gold
Hirose Electric USA, Inc. DF51K-22DS-2C(800)					22 positions				2				Polybutylene Terephthalate (PBT) Glass Filled								Female Socket		105 ░C	-55 °C	Receptacle		Free Hanging (In-Line)	Locking Ramp							2 mm	0.079 in	Contacts Not Included	Black	0.079 in	2 mm	Crimp
Hirose Electric USA, Inc. DF51K-30SCF(800)																																									Crimp	Stamped	30 AWG	Tin	39.4 Áin	1 Ám	Socket
Hirose Electric USA, Inc. DF51K-12DS-2C(800)					12				2				Polybutylene Terephthalate (PBT) Glass Filled								Female Socket		105 ░C	-55 °C	Receptacle		Free Hanging (In-Line)	Locking Ramp							2 mm	0.079 in	Contacts Not Included	Black	0.079 in	2 mm	Crimp
Hirose Electric USA, Inc. DF51K-16DP-2DSA(805)	Shrouded - 4 Wall	Brass	Gold	Solder		General Purpose Industrial Medical	UL94 V-0	Board to Cable/Wire	2	0.079 in	2 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	0.1 µm	3.94 µin	0.1 Ám	3.94 Áin	8.4 mm	0.331 in	Black	Male Pin	250 VAC	105 ░C	-55 °C	Header	Varies by Wire Gauge	Through Hole	Latch Holder	0.118 in	3 mm	Square	0.079 in	2 mm	Gold														16
Hirose Electric USA, Inc. DF51K-10DP-2DS(800)	Shrouded - 4 Wall	Brass	Tin	Solder	10	General Purpose Industrial Medical	UL94 V-0	Board to Cable/Wire	2	0.079 in	2 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	1 µm	39.4 µin	1 çm	39.4 çin			Black	Male Pin	250 VAC	105 ░C	-55 °C	Header	Varies by Wire Gauge	Through Hole Right Angle	Latch Holder	0.118 in	3 mm	Square	0.079 in	2 mm
Hirose Electric USA, Inc. DF51KB-6DP-2DS(805)	Shrouded - 4 Wall	Brass	Gold	Solder	6	General Purpose Industrial Medical	UL94 V-0	Board to Cable/Wire	2	0.079 in	2 mm	All	Polybutylene Terephthalate (PBT) Glass Filled	0.1 µm	3.94 µin	0.1 Ám	3.94 Áin			Black	Male Pin	250 VAC	105 ░C	-55 °C	Header	Varies by Wire Gauge	Through Hole Right Angle	Latch Holder	0.118 in	3 mm	Square	0.079 in	2 mm	Gold															Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.06
		25	$ 0.05
		50	$ 0.05
		100	$ 0.05
		250	$ 0.04
		500	$ 0.04
		1000	$ 0.03
		2500	$ 0.03
	Tape & Reel (TR)	10000	$ 0.02

Description

General part information

DF51KB Series

Headers & Wire Housings 2mm Pitch, Positive lock, Wire-to-Board Connector (UL, C-UL Listed) Socket double row 10 pos
