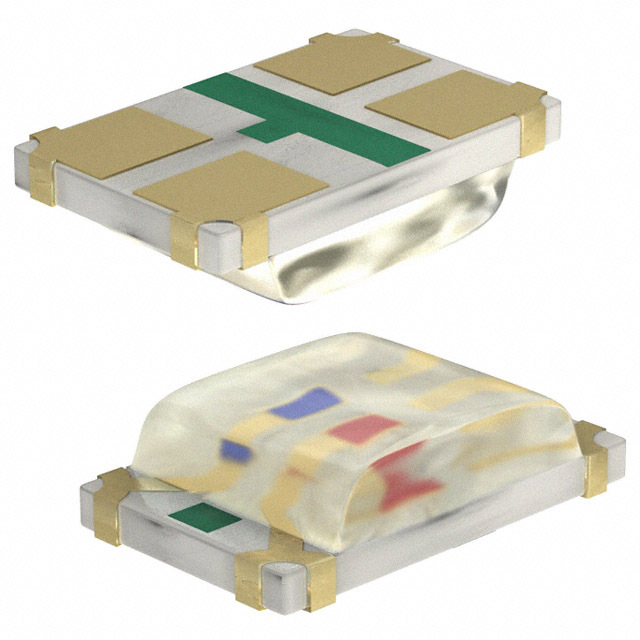

APHBM2012SURKSYKC

Active

Kingbright

LED RED/YLW CLEAR 2012 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APHBM2012SURKSYKC

Active

Kingbright

LED RED/YLW CLEAR 2012 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APHBM2012SURKSYKC

Color	Yellow, Red
Configuration	Independent
Current - Test	20mA Red, 20mA Yellow
Height (Max) [Max] [z]	0.45 mm
Lens Color	Colorless
Lens Size [x]	1.3 mm
Lens Size [y]	1.25 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	150 mcd, 200 mcd
Mounting Type	Surface Mount
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [y]	1.25 mm
Supplier Device Package	2012
Supplier Device Package	0805
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	1.95 V, 2 V
Wavelength - Dominant [custom]	635 nm, 590 nm
Wavelength - Peak	650 nm, 590 nm

APHBM2012 Series

Part	Lens Style	Voltage - Forward (Vf) (Typ)	Package / Case	Supplier Device Package	Supplier Device Package	Configuration	Color	Current - Test	Wavelength - Dominant [custom]	Lens Size [x]	Lens Size [y]	Lens Color	Height (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Viewing Angle	Mounting Type	Wavelength - Peak	Lens Transparency	Wavelength - Dominant	Current - Test	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Millicandela Rating [custom]
Kingbright APHBM2012SURKSYKC	Rectangle with Flat Top	1.95 V 2 V	0805	2012	0805	Independent	Red Yellow	20mA Red 20mA Yellow	590 nm 635 nm	1.3 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm	150 mcd 200 mcd	120 °	Surface Mount	590 nm 650 nm	Clear
Kingbright APHBM2012LVBDSYKJ3C	Rectangle with Flat Top	1.9 V 2.7 V	4-SMD No Lead	4-SMD		Independent	Blue Yellow			1.2 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm	20 mcd 35 mcd	120 °	Surface Mount	465 nm 590 nm	Clear	470 nm 590 nm	2 mA 2 mA
Kingbright APHBM2012LVBDZGKC	Rectangle with Flat Top	2.7 V	0805	4-SMD		Independent	Blue Green			1.2 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm		120 °	Surface Mount	465 nm 515 nm	Clear	470 nm 525 nm		2 mA	2 mA	20 mcd	90 mcd
Kingbright APHBM2012LQBDCGKC	Rectangle with Flat Top		4-SMD No Lead	4-SMD		Independent	Blue Green		465 nm 570 nm	1.2 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm	2 mcd 12 mcd	120 °	Surface Mount		Clear			2 mA	2 mA			1.9 V	2.7 V	574 nm	460 nm
Kingbright APHBM2012CGKSYKC	Rectangle with Flat Top	2 V 2.1 V	0805	2012	0805	Independent	Green Yellow			1.3 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm		120 °	Surface Mount	574 nm 590 nm	Clear	570 nm 590 nm	20 mA 20 mA									120mcd Yellow 50mcd Green
Kingbright APHBM2012LSURKSYKC	Rectangle with Flat Top	1.8 V 1.9 V	4-SMD No Lead	4-SMD		Independent	Red Yellow			1.2 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm	10 mcd 10 mcd	120 °	Surface Mount		Clear	590 nm 630 nm											2 mA	2 mA	590 nm	645 nm
Kingbright APHBM2012QBDSURKC	Rectangle with Flat Top		0805	2012	0805	Independent	Blue Red			1.3 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm	80 mcd 80 mcd	120 °	Surface Mount		Clear	465 nm 630 nm		20 mA					3.3 V		460 nm			20 mA		645 nm	1.95 V
Kingbright APHBM2012LVBDSEKJ3C	Rectangle with Flat Top		0805	4-SMD		Independent	Blue Red			1.2 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm	20 mcd 60 mcd	120 °	Surface Mount		Clear	470 nm 625 nm		2 mA					2.7 V		465 nm			2 mA		640 nm	1.8 V
Kingbright APHBM2012SURKZGKC	Rectangle with Flat Top		0805	4-SMD		Independent	Green Red			1.25 mm	1.2 mm	Colorless	0.45 mm	2 mm	1.25 mm	250 mcd 280 mcd	120 °	Surface Mount	515 nm 645 nm	Clear		20 mA 20 mA					3.3 V									1.95 V	525 nm	630 nm
Kingbright APHBM2012LCGKSYKC	Rectangle with Flat Top	1.9 V 1.9 V	4-SMD No Lead	4-SMD		Independent	Green Yellow			1.2 mm	1.25 mm	Colorless	0.45 mm	2 mm	1.25 mm		120 °	Surface Mount	574 nm 590 nm	Clear	570 nm 590 nm	2 mA 2 mA				2 mcd													10 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APHBM2012 Series

Red, Yellow 635nm Red, 590nm Yellow LED Indication - Discrete 1.95V Red, 2V Yellow 0805 (2012 Metric)
