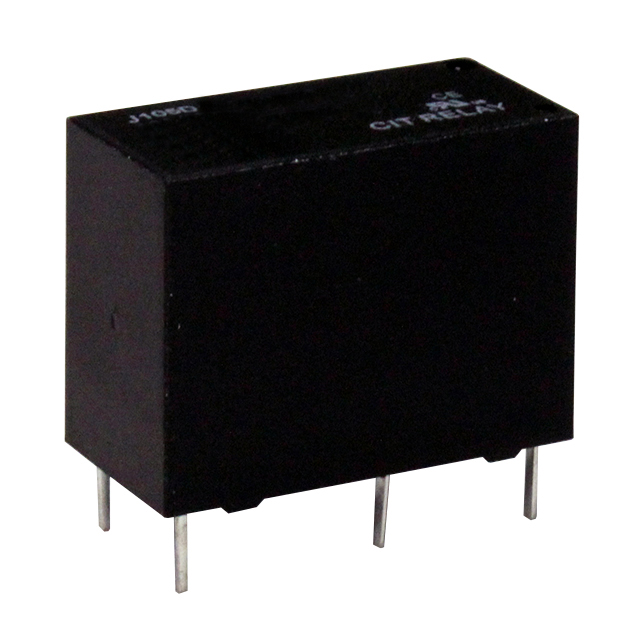

J105D1CS48VDC.45

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 10A 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J105D1CS48VDC.45

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 10A 48V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J105D1CS48VDC.45

Coil Current	9.4 mA
Coil Resistance	5.12 kOhms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	10 A
Load - Max Switching [Max]	2770 VA
Mounting Type	Through Hole
Must Operate Voltage	36 VDC
Must Release Voltage	4.8 VDC
Operate Time	10 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	277 VAC
Termination Style	PC Pin

J105D1CS Series

Part	Load - Max Switching [Max]	Coil Voltage	Switching Voltage [Max]	Coil Current	Contact Rating (Current)	Mounting Type	Seal Rating	Contact Form	Must Release Voltage	Coil Resistance	Relay Type	Operate Time	Must Operate Voltage	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Release Time	Coil Type
CIT Relay and Switch J105D1CS48VDC.45	2770 VA	48 VDC	277 VAC	9.4 mA	10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	4.8 VDC	5.12 kOhms	General Purpose	10 ms	36 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching
CIT Relay and Switch J105D1CS6VDC.45	2770 VA		277 VAC	75 mA	10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	0.6 VDC	80 Ohms	General Purpose	10 ms	4.5 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching
CIT Relay and Switch J105D1CS12VDC.45	2770 VA	12 VDC	277 VAC	37.5 mA	10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	1.2 VDC	320 Ohms	General Purpose	10 ms	9 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching
CIT Relay and Switch J105D1CS24VDC.45	2770 VA	24 VDC	277 VAC	18.8 mA	10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	2.4 VDC	1280 Ohms	General Purpose	10 ms	18 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching
CIT Relay and Switch J105D1CS9VDC.45	2770 VA	9 VDC	277 VAC	50 mA	10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	0.9 VDC	180 Ohms	General Purpose	10 ms	6.75 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching
CIT Relay and Switch J105D1CS3VDC.45	2770 VA		277 VAC	150 mA	10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	0.3 VDC	20 Ohms	General Purpose	10 ms	2.25 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching
CIT Relay and Switch J105D1CS18VDC.45	2770 VA	18 VDC	277 VAC		10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	1.8 VDC	720 Ohms	General Purpose	10 ms	13.5 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching
CIT Relay and Switch J105D1CS5VDC.45	2770 VA	5 VDC	277 VAC	90.9 mA	10 A	Through Hole	Sealed - Fully	SPDT (1 Form C)	0.5 VDC	55 Ohms	General Purpose	10 ms	3.75 VDC	PC Pin	-55 °C	125 °C	Silver Tin Oxide (AgSnO)	10 ms	Non Latching

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.60
		10	$ 1.50
		25	$ 1.33
		40	$ 1.27
		100	$ 1.20
		300	$ 1.07
		500	$ 1.00
		1000	$ 0.93
		4900	$ 0.90

Description

General part information

J105D1CS Series

General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole
