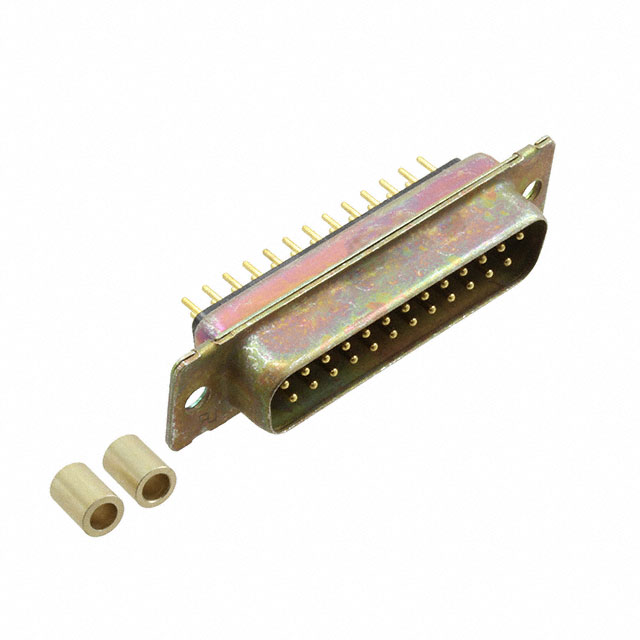

1218124-3

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB PLUG 25POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB PLUG 25POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	1218124-3

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish [custom]	Steel
Shell Material, Finish [custom]	Cadmium Plated
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

Part	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish	Flange Feature	Number of Rows	Current Rating (Amps)	Termination	Connector Style	Contact Material	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type
TE Connectivity Aerospace, Defense and Marine 1218124-3	Steel	Cadmium Plated	Black	-55 °C	125 °C	Signal	Gold	Housing/Shell (Unthreaded)	2	5 A	Solder	D-Sub	Brass	Male Pins Plug	50 µin	1.27 µm	B DB	3	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

No documents available
