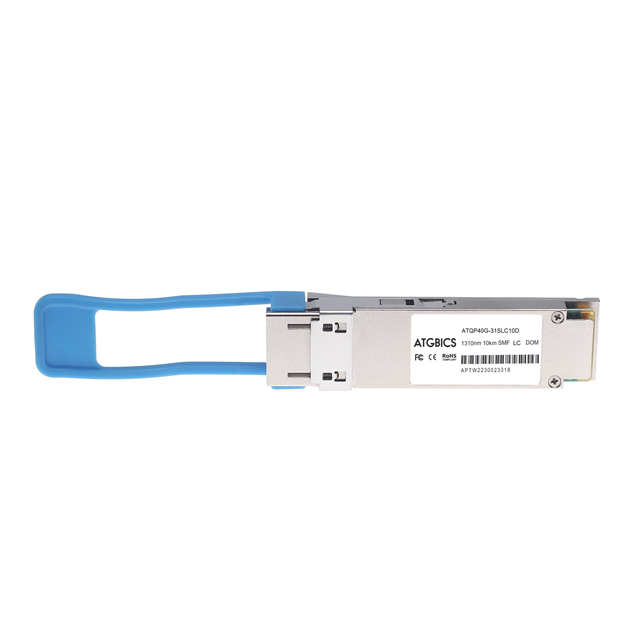

EX-QSFP-40GE-LR4-C

Active

ATGBICS

COMPATIBLE QSFP+ 40G

Search across all available documentation for this part.

Active

ATGBICS

COMPATIBLE QSFP+ 40G

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply	Wavelength	Mounting Type	Applications	Connector Type	Data Rate	Color	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Features	Length [x]	Length [x]	Usage	Gender	Cable Connectors	Cable Type	Fastening Type	Wire Gauge	Length	Length
ATGBICS EX-QSFP-40GE-LR4-C	3.3 V	1310 nm	Pluggable QSFP+	General Purpose Networking	LC Duplex	40 Gbps
ATGBICS EX-QSFP-40GE-DAC-3M-C					Plug to Plug		Black	Unshielded	70 °C	0 °C	28 AWG 30 AWG	Passive	9.84 ft	3 m	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Round	Push-Pull
ATGBICS EX-QSFP-40GE-DAC-2M-C					Plug to Plug		Black	Unshielded	70 °C	0 °C		Passive	6.56 ft	2 m	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Round	Push-Pull	30 AWG
ATGBICS EX-QSFP-40GE-DAC-50CM-C					Plug to Plug		Black	Unshielded	70 °C	0 °C		Passive	1.64 ft	500 mm	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Round	Push-Pull	30 AWG
ATGBICS EX-QSFP-40GE-DAC-10M-C					Plug to Plug		Black	Unshielded	70 °C	0 °C		Passive			Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Round	Push-Pull	24 AWG	10 m	32.81 ft
ATGBICS EX-QSFP-40GE-DAC-5M-C					Plug to Plug		Black	Unshielded	70 °C	0 °C		Passive			Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Round	Push-Pull	24 AWG
ATGBICS EX-QSFP-40GE-DAC-7M-C					Plug to Plug		Black	Unshielded	70 °C	0 °C		Passive	22.97 '	7 m	Data Center Server Rack Ethernet Network	Male to Male	QSFP+ to QSFP+	Round	Push-Pull	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Transceiver Module Networking, General Purpose 40Gbps 1310nm 3.3V LC Duplex Pluggable, QSFP+
