BK/AGC-40

Obsolete

Eaton - Electronics Division

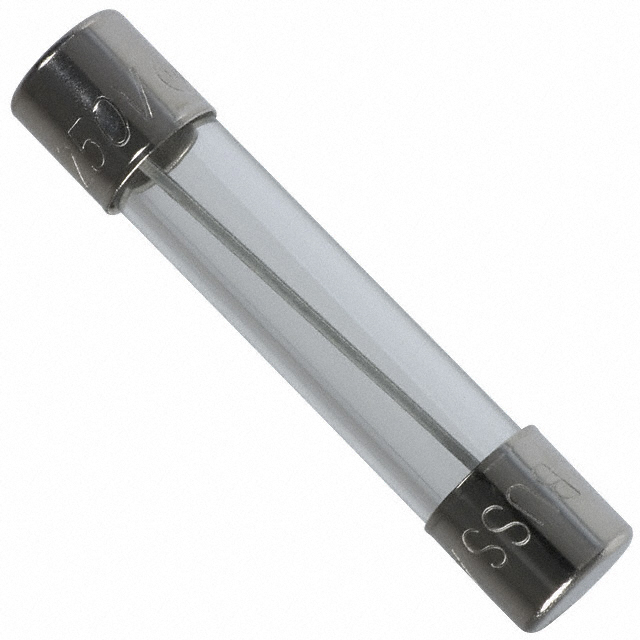

FUSE GLASS 40A 32VAC 3AB 3AG

Deep-Dive with AI

DocumentsDatasheet Fuse Accessory Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BK/AGC-40

Approval Agency	CSA, UL
Breaking Capacity @ Rated Voltage	1 kA
Current Rating (Amps)	40 A
DC Cold Resistance	0.0016 Ohms
Melting I²t	11360
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	3AB, 3AG
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Fast Blow
Size / Dimension [diameter]	0.25 in
Size / Dimension [diameter]	6.35 mm
Size / Dimension [x]	31.75 mm
Size / Dimension [x]	1.25 "
Voltage Rating - AC	32 V

AGC Series

...

Part	Response Time	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	DC Cold Resistance	Package / Case [x]	Package / Case [y]	Package / Case	Voltage Rating - AC	Melting I²t	Approval Agency	Mounting Type	Breaking Capacity @ Rated Voltage	Melting I˛t
Eaton - Electronics Division BK/AGC-V-2	Fast Blow	2 A	-55 °C	125 °C	0.266 in	6.76 mm	1.292 "	32.82 mm	0.063 Ohms	1/4	1-1/4	3AB 3AG	250 V	17.52	CSA UL	Through Hole	100 A
Eaton - Electronics Division BK/AGC-V-.175-R	Fast Blow	175 mA	-55 °C	125 °C	0.266 in	6.76 mm	1.292 "	32.82 mm		1/4	1-1/4	3AB 3AG	250 V			Through Hole
Eaton - Electronics Division BK/AGC-V-5-R	Fast Blow	5 A	-55 °C	125 °C	0.266 in	6.76 mm	1.292 "	32.82 mm	19 mOhms	1/4	1-1/4	3AB 3AG	250 V	131.5	CSA UL	Through Hole	200 A
Eaton - Electronics Division BK/AGC-4/10	Fast Blow	400 mA	-55 °C	125 °C	0.25 in	6.35 mm	1.25 "	31.75 mm		1/4	1-1/4	3AB 3AG	250 V			Requires Holder
Eaton - Electronics Division BK/AGC-V-2-1/4	Fast Blow	2.25 A	-55 °C	125 °C	0.266 in	6.76 mm	1.292 "	32.82 mm	0.052 Ohms	1/4	1-1/4	3AB 3AG	250 V	22.832	CSA UL	Through Hole	100 A
Eaton - Electronics Division BK/AGC-20-R	Fast Blow	20 A	-55 °C	125 °C	0.25 in	6.35 mm	1.25 "	31.75 mm	3.4 mOhms	1/4	1-1/4	3AB 3AG	32 V	2440	CSA UL	Requires Holder	1 kA
Eaton - Electronics Division BK/AGC-2RR	Fast Blow	2 A	-55 °C	125 °C	0.25 in	6.35 mm	1.25 "	31.75 mm	0.063 Ohms	1/4	1-1/4	3AB 3AG	250 V		CSA UL	Requires Holder	100 A	17.52
Eaton - Electronics Division BK-AGC-B-2-R	Fast Blow	2 A	-55 °C	125 °C	0.25 in	6.35 mm	1.25 "	31.75 mm	0.063 Ohms	1/4	1-1/4	3AB 3AG	250 V	17.52	CSA UL	Requires Holder	100 A
Eaton - Electronics Division BK/AGC-1/2	Fast Blow	0.5 A	-55 °C	125 °C	0.25 in	6.35 mm	1.25 "	31.75 mm	0.483 Ohms	1/4	1-1/4	3AB 3AG	250 V	0.385	CSA UL	Requires Holder	35 A
Eaton - Electronics Division BK/AGC-40	Fast Blow	40 A	-55 °C	125 °C	0.25 in	6.35 mm	1.25 "	31.75 mm	0.0016 Ohms	1/4	1-1/4	3AB 3AG	32 V	11360	CSA UL	Requires Holder	1 kA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AGC Series

40 A 32 V AC DC Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4" x 1-1/4"

Documents

Technical documentation and resources

Datasheet

Fuse Accessory Selection Guide

Datasheet
