180-026-272L020

Obsolete

MH Connectors

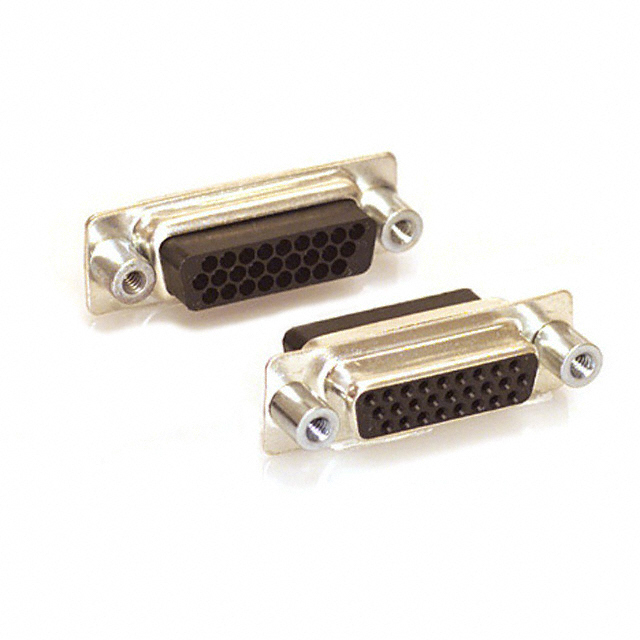

CONN D-SUB HD HOUSING RCPT 26POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

180-026-272L020

Obsolete

MH Connectors

CONN D-SUB HD HOUSING RCPT 26POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-026-272L020

Connector Style	High Density, D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Features	Shielded
Flange Feature	Cable Side
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Number of Rows	3
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density

180-026 Series

Part	Number of Rows	Dielectric Material	Flange Feature	Contact Material	Contact Type	Features	Shell Material, Finish	Contact Finish	Contact Finish Thickness	Connector Style	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Connector Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Color	Mounting Type	Termination	Note	Contact Form
MH Connectors 180-026-101L031	3	Polybutylene Terephthalate (PBT)	4-40	Brass	Signal	Shielded	Steel Yellow Chromate Plated	Gold	Flash	D-Sub High Density	5 A	UL94 V-0	26	Male Pins Plug	2	(DA A) High Density
MH Connectors 180-026-212-001	3	Polyester Glass Filled	Housing/Shell (Unthreaded)		Signal			Gold	Flash	D-Sub High Density	2 A	UL94 V-0	26	Receptacle Female Sockets	2	(DA A) High Density	Black	Panel Mount Through Hole	Solder
MH Connectors 180-026-203L021	3	Polybutylene Terephthalate (PBT)	Cable Side	Brass	Signal	Shielded	Nickel Plated Steel	Gold	Flash	D-Sub High Density	5 A	UL94 V-0	26	Receptacle Female Sockets	2	(DA A) High Density
MH Connectors 180-026-202-021	3	Polybutylene Terephthalate (PBT)	Cable Side		Signal			Gold	Flash	D-Sub High Density	2 A	UL94 V-0	26	Receptacle Female Sockets	2	(DA A) High Density	Black
MH Connectors 180-026-202L021	3	Polybutylene Terephthalate (PBT)	Cable Side	Brass	Signal	Shielded		Gold	Flash	D-Sub High Density	5 A	UL94 V-0	26	Receptacle Female Sockets	2	(DA A) High Density
MH Connectors 180-026-272L020	3		Cable Side		Signal	Shielded				D-Sub High Density			26	Receptacle for Female Contacts	2	(DA A) High Density		Free Hanging (In-Line)		Contacts Not Included
MH Connectors 180-026-101L001	3	Polybutylene Terephthalate (PBT)	Housing/Shell (Unthreaded)	Brass	Signal	Shielded	Steel Yellow Chromate Plated	Gold	Flash	D-Sub High Density	5 A	UL94 V-0	26	Male Pins Plug	2	(DA A) High Density
MH Connectors 180-026-102-001	3	Polybutylene Terephthalate (PBT)	Housing/Shell (Unthreaded)		Signal	Grounding Indents		Gold	Flash	D-Sub High Density	2 A	UL94 V-0	26	Male Pins Plug	2	(DA A) High Density	Black
MH Connectors 180-026-201L031	3	Polybutylene Terephthalate (PBT)	4-40	Brass	Signal	Shielded	Steel Yellow Chromate Plated	Gold	Flash	D-Sub High Density	5 A	UL94 V-0	26	Receptacle Female Sockets	2	(DA A) High Density					Stamped
MH Connectors 180-026-203L011	3	Polybutylene Terephthalate (PBT)	Cable Side	Brass	Signal	Shielded	Nickel Plated Steel	Gold	Flash	D-Sub High Density	5 A	UL94 V-0	26	Receptacle Female Sockets	2	(DA A) High Density

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

180-026 Series

Receptacle for Female Contacts Housing D-Sub, High Density Connector 26 Position
