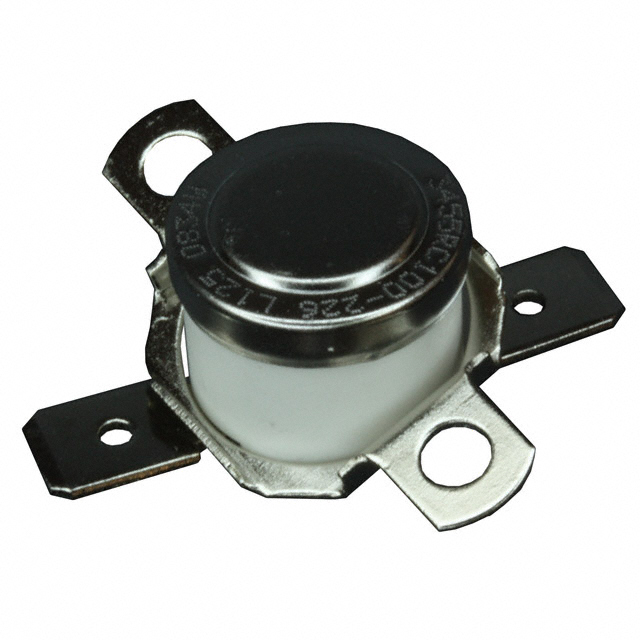

3455RC 01000236

Obsolete

Honeywell Sensing and Productivity Solutions

THERMOSTAT 107DEG C SPST-NC CYL

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

THERMOSTAT 107DEG C SPST-NC CYL

Technical Specifications

Parameters and characteristics for this part

Specification	3455RC 01000236

Circuit	SPST-NC
Current Rating - AC	10 A, 15 A
Mounting Type	Chassis Mount
Package / Case	Cylinder with Mounting Flange
Reset Temperature	91 °C
Reset Temperature	195 °F
Switching Cycles	10000
Switching Temperature	107 °C, 225 °F
Termination Style	Quick Connect

Part	Package / Case	Termination Style	Mounting Type	Reset Temperature	Switching Cycles	Current Rating - AC	Switching Temperature	Reset Temperature	Reset Temperature	Circuit	Switching Temperature
Honeywell Sensing and Productivity Solutions 3455RM 81700009	Cylinder	Solder Lug	Chassis Mount	Manual Reset
Honeywell Sensing and Productivity Solutions 3455RMG80020682	Cylinder	Solder Lug	Chassis Mount	Manual Reset
Honeywell Sensing and Productivity Solutions 3455RCG82980047	Cylinder	Quick Connect	Chassis Mount
Honeywell Sensing and Productivity Solutions 3455R 01000277	Cylinder	Quick Connect	Chassis Mount		100000	7.2 A 15 A
Honeywell Sensing and Productivity Solutions 3455RCG84230002	Cylinder	Quick Connect	Chassis Mount
Honeywell Sensing and Productivity Solutions 3455RM 00820623	Cylinder	Solder Lug	Chassis Mount	Manual Reset
Honeywell Sensing and Productivity Solutions 3455RC 01000236	Cylinder with Mounting Flange	Quick Connect	Chassis Mount		10000	10 A 15 A	107 °C 225 °F	91 °C	195 °F	SPST-NC
Honeywell Sensing and Productivity Solutions 3455RC 01000240	Cylinder with Mounting Flange	Quick Connect	Chassis Mount		10000	10 A 15 A	275 °F	118 °C	245 °F	SPST-NC	135 °C
Honeywell Sensing and Productivity Solutions 3455RM 00020182	Cylinder	Solder Lug	Chassis Mount	Manual Reset
Honeywell Sensing and Productivity Solutions 3455RC 01000247	Cylinder with Mounting Flange	Quick Connect	Chassis Mount		10000	10 A 15 A	150 °F	49 °C	120 °F	SPST-NO	66 °C
