1EDN7550BXTSA1

Active

Infineon Technologies

EICEDRIVER™ 20 V LOW-SIDE DRIVER IC WITH TYPICAL 4 A SOURCE AND 8 A SINK OUTPUT CURRENTS. IT COMES WITH A NON-ISOLATED PG-SOT23-6 PACKAGE AND WORKS WITH GAN HEMTS, IGBTS AND MOSFETS. FEATURES: SEPARATE SINK/SOURCE OUTPUT, SINGLE CHANNEL, TRULY DIFFERENCIAL INPUTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

1EDN7550BXTSA1

Active

Infineon Technologies

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1EDN7550BXTSA1

Channel Type	Single
Current - Peak Output (Source, Sink)	8 A, 4 A
Driven Configuration	High-Side
Gate Type	N-Channel, P-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]	84 V
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C

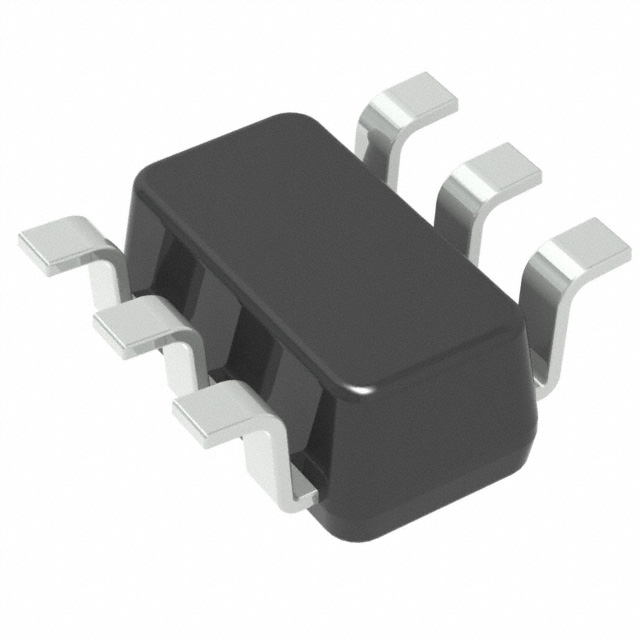

Package / Case	SOT-23-6
Rise / Fall Time (Typ) [custom]	4.5 ns
Rise / Fall Time (Typ) [custom]	6.5 ns
Supplier Device Package	PG-SOT23-6
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	4.5 V

1EDN7550 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Driven Configuration	Mounting Type	Package / Case	Gate Type	Supplier Device Package	Channel Type	High Side Voltage - Max (Bootstrap) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Current - Peak Output (Source, Sink)	Number of Drivers
Infineon Technologies 1EDN7550BXTSA1	20 V	4.5 V	High-Side	Surface Mount	SOT-23-6	N-Channel P-Channel MOSFET	PG-SOT23-6	Single	84 V	4.5 ns	6.5 ns	150 °C	-40 °C	Non-Inverting	4 A 8 A	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.99
		10	$ 0.88
		25	$ 0.84
		100	$ 0.69
		250	$ 0.64
		500	$ 0.57
		1000	$ 0.45
	Digi-Reel®	1	$ 0.99
		10	$ 0.88
		25	$ 0.84
		100	$ 0.69
		250	$ 0.64
		500	$ 0.57
		1000	$ 0.45
	Tape & Reel (TR)	3000	$ 0.42
		6000	$ 0.40
		15000	$ 0.38
Newark	Each (Supplied on Cut Tape)	1	$ 0.89
		10	$ 0.67
		25	$ 0.62
		50	$ 0.59
		100	$ 0.56
		250	$ 0.54
		500	$ 0.52
		1000	$ 0.50

Description

General part information

1EDN7550 Series

The 1EDN7550B is a non-isolated gate-driver IC and available in a small SOT-23 package. It has truly differential inputs enabling cost-effective solutions with exceptional power density in:
